CROSSTREK Model

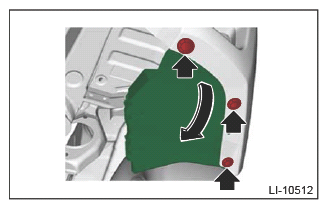

  1. Turn over the cover - side LWR.
    1. Remove the clips, and turn over the cover - side LWR.
      G12398651Courtesy of SUBARU OF AMERICA, INC.

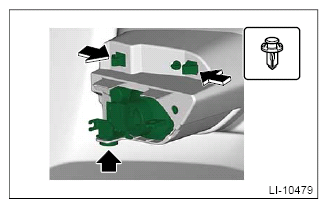

  2. Remove the reflex reflector assembly.
    1. Release the clips and claws, and then remove the reflex reflector assembly.
      G12398652Courtesy of SUBARU OF AMERICA, INC.
