Rear ABS Wheel Speed Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For the hybrid model, disconnect the battery negative terminal.
  2. Lift up the vehicle, and then remove the rear wheels.
  3. Remove the rear ABS wheel speed sensor.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.
    • Leave the sensor harness clamp on the vehicle side.
    1. Disconnect the connector from the rear ABS wheel speed sensor.
    2. Remove the harness clamp and bolts, and remove the rear ABS wheel speed sensor from the rear axle housing.

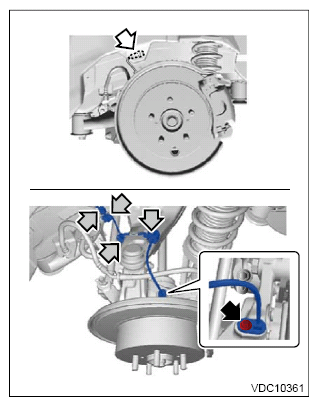

      • Impreza model
        G12392630Courtesy of SUBARU OF AMERICA, INC.
      • Crosstrek model
        G12392631Courtesy of SUBARU OF AMERICA, INC.
