Structural Diagram 1

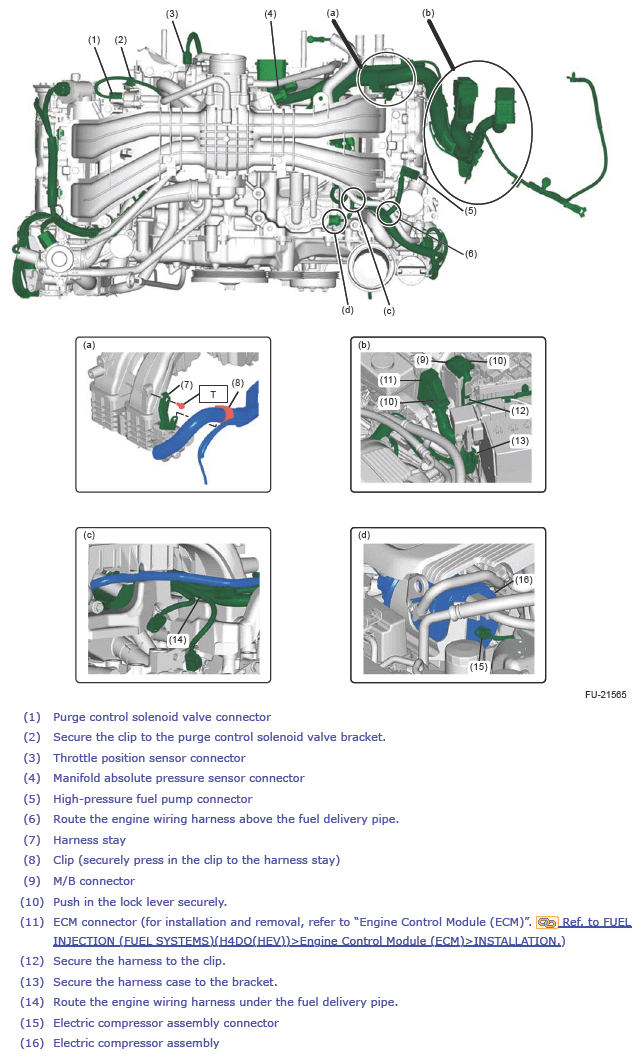

Fig 1: Engine Wiring Harness Components (Structural Diagram 1)
G13934072Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
