Inspection Mode AP

DTC	Description and trouble part	Condition	Number of driving cycles on the detecting condition
P000A	"A" CAMSHAFT POSITION SLOW RESPONSE BANK 1	[Engine Coolant Temperature]: 70°C (158°F) or more	2
P000B	"B" CAMSHAFT POSITION SLOW RESPONSE BANK 1		2
P000C	"A" CAMSHAFT POSITION SLOW RESPONSE BANK 2		2
P000D	"B" CAMSHAFT POSITION SLOW RESPONSE BANK 2		2
P0011	"A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1		2
P0014	"B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 1		2
P0016	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 1 SENSOR A		2
P0017	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 1 SENSOR B		2
P0018	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 2 SENSOR A		2
P0019	CRANKSHAFT POSITION - CAMSHAFT POSITION CORRELATION BANK 2 SENSOR B		2
P0021	"A" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2		2
P0024	"B" CAMSHAFT POSITION - TIMING OVER-ADVANCED OR SYSTEM PERFORMANCE BANK 2		2

WARNING: When performing inspection mode AP on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.

CAUTION: Performing inspection mode needs a driver along with a checker who should check AP the data.

NOTE: Even if switched to the hybrid battery save mode under the following conditions, the engine may not start .

NOTE:

Power from HV battery is low and reduction in SOC is slight .
SOC is recovering due to regeneration, etc .

Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
Warm up the engine until [Engine Coolant Temperature] reaches 70°C (158°F) or more.
Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAG)>CLEAR MEMORY .

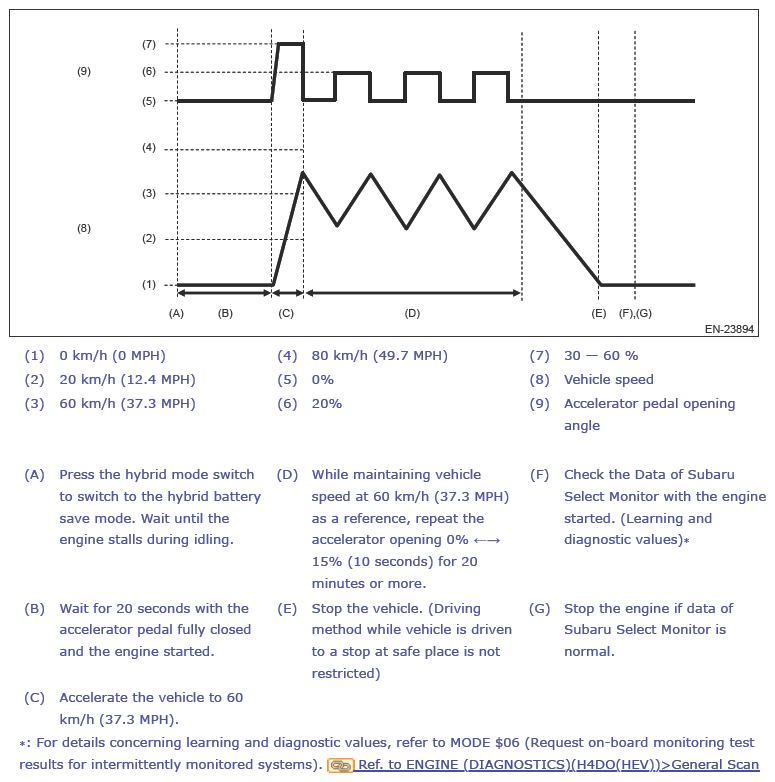

Drive according to the drive pattern described below.

Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- In pattern (D), it is acceptable to stop the vehicle depending on the traffic conditions. Drive the vehicle with the accelerator opening angle of 0% ←→ 15% (10 seconds) for an accumulated duration of 20 minutes or more .
- The condition of acceleration or constant driving can be changed according to different traffic conditions .
- Always keep on checking the data while reading out the diagnostic value because the diagnostic value is repeatedly updated .
- If diagnostic values have not been input after driving, repeat the cycle from diagnosis 4 without stopping the engine .
Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
