Example Of DTC Data Not Received

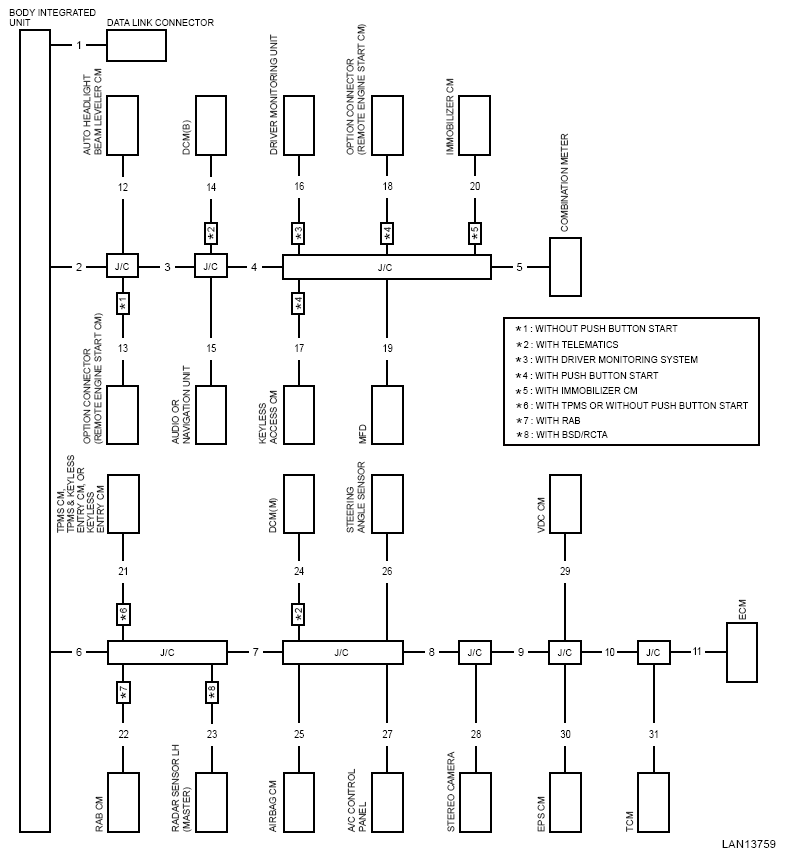

• With EyeSight

Courtesy of SUBARU OF AMERICA, INC.

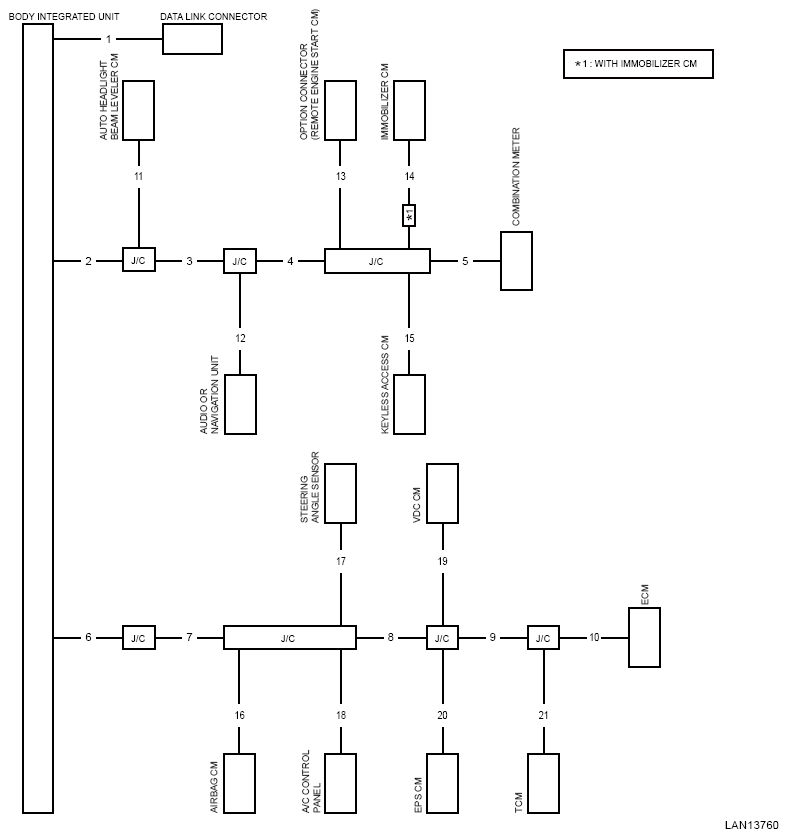

• Without EyeSight

Courtesy of SUBARU OF AMERICA, INC.

Vicinity of No. 14 (with EyeSight) DCM (BODY CAN)

Courtesy of SUBARU OF AMERICA, INC.

Vicinity of No. 18 (without EyeSight), No. 26 (with EyeSight) steering angle sensor

Courtesy of SUBARU OF AMERICA, INC.
