Window Washer

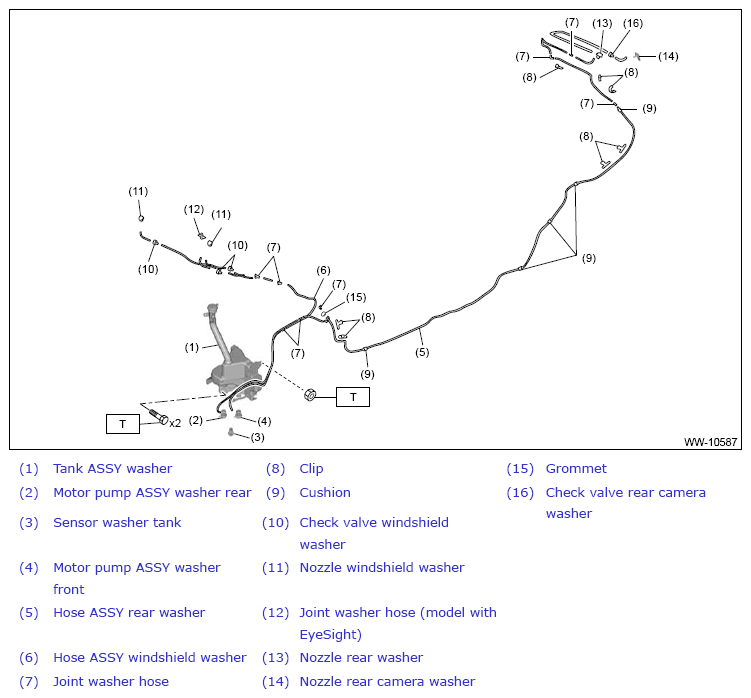

Fig 1: Window Washer Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 6 (0.6, 4.4)
Courtesy of SUBARU OF AMERICA, INC.
