Rear Differential

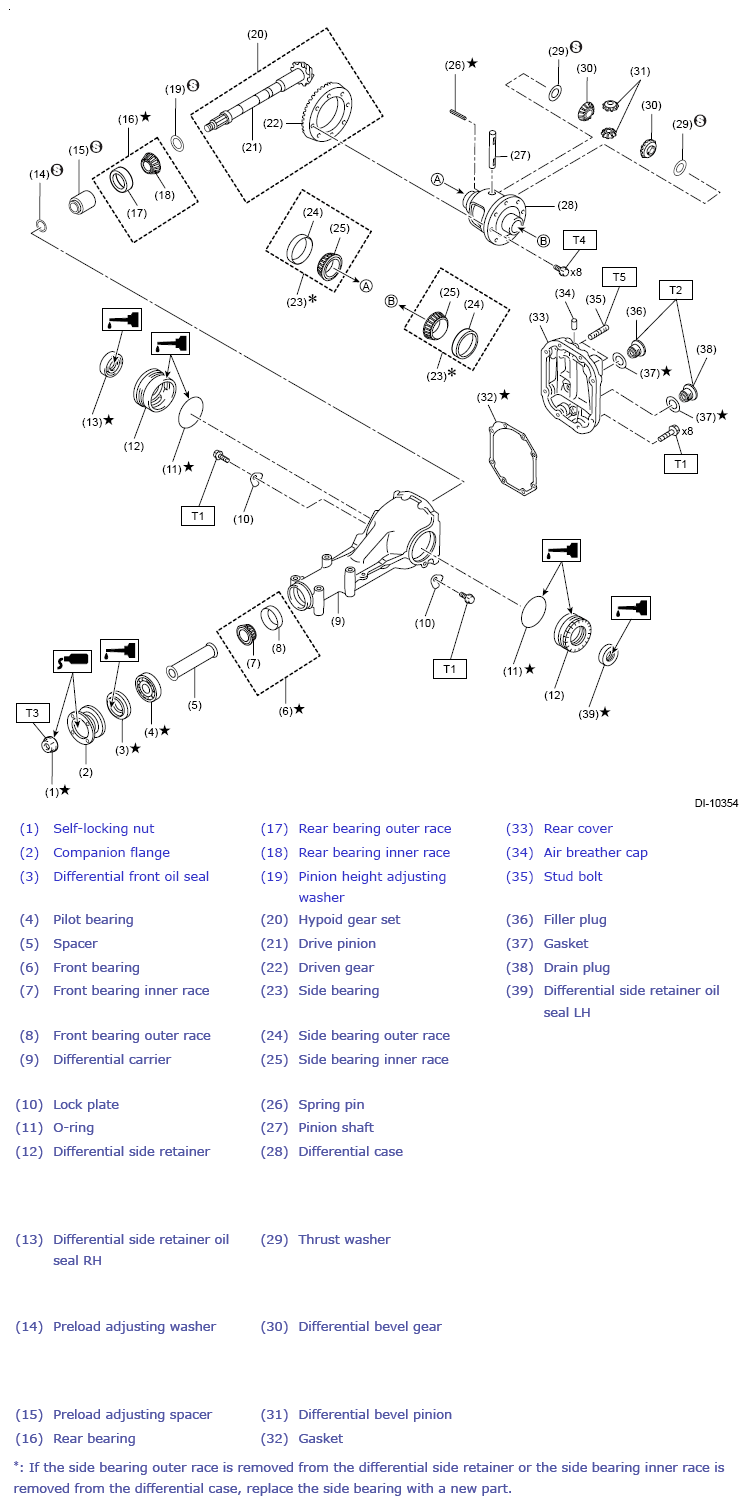

Fig 1: Exploded View Of Rear Differential Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 50 (5.1, 36.9)

T3:  Ref. to DIFFERENTIALS>Rear Differential (VA-type)>ASSEMBLY .

T4:  Ref. to DIFFERENTIALS>Rear Differential (VA-type)>ASSEMBLY .

T5:  Ref. to DIFFERENTIALS>Rear Differential (VA-type)>ASSEMBLY .
