Auto Start Stop System (Diagnostics): Electrical Component Location: Location

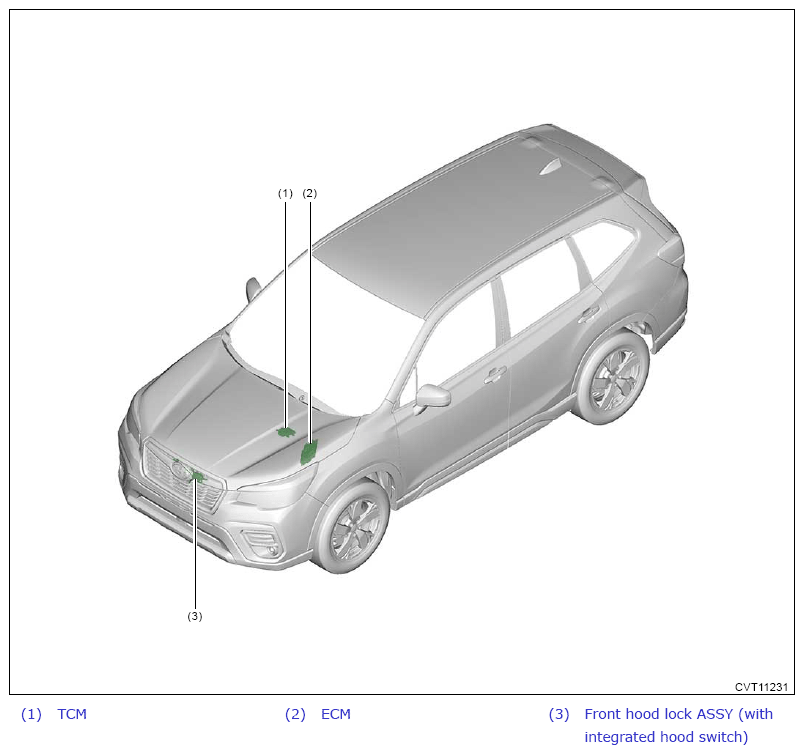

Courtesy of SUBARU OF AMERICA, INC.

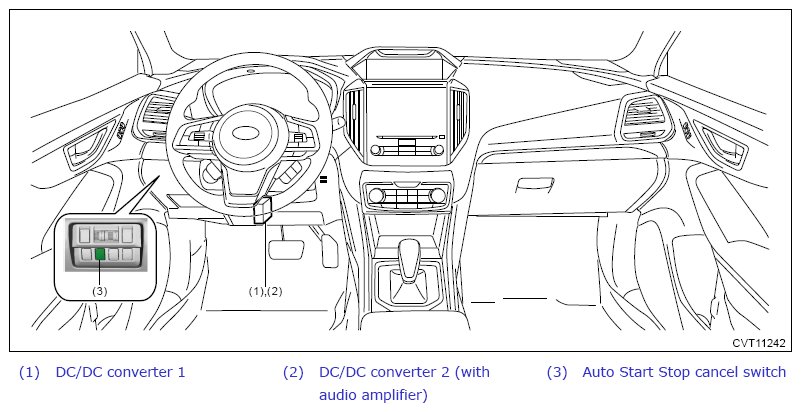

Courtesy of SUBARU OF AMERICA, INC.

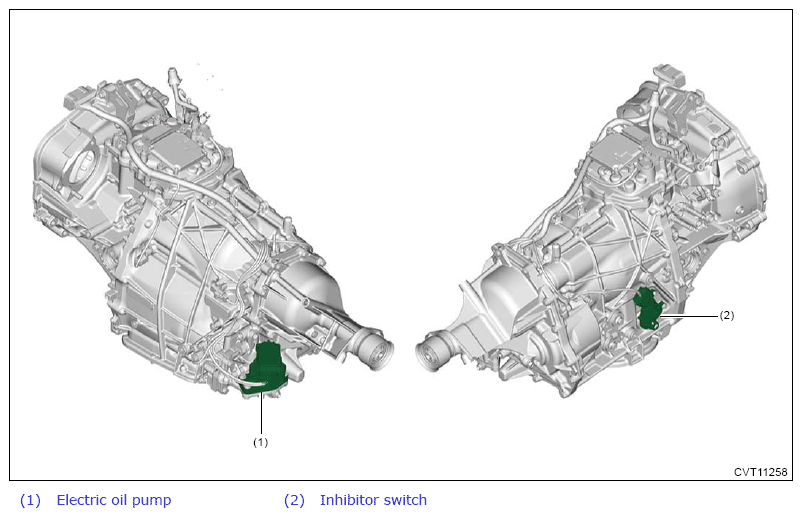

Courtesy of SUBARU OF AMERICA, INC.

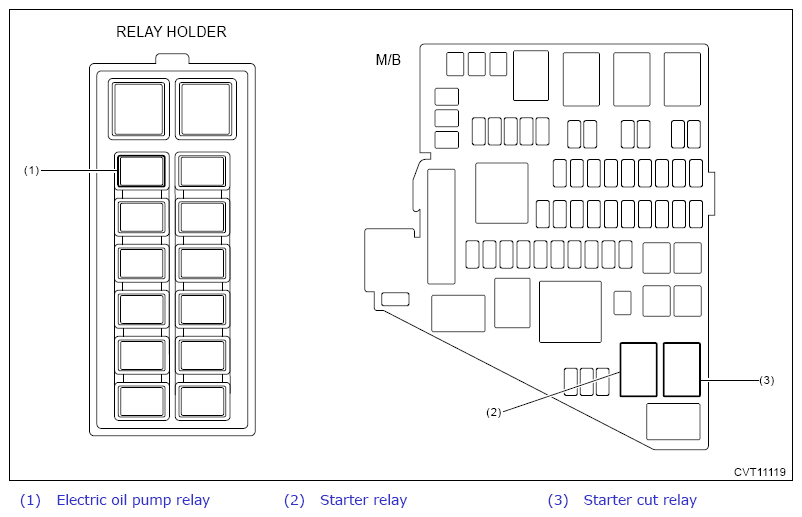

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
