EyeSight Assist Monitor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

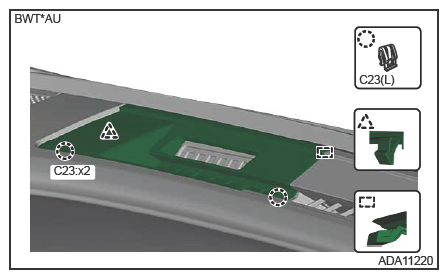

  2. Remove the cover assembly EyeSight monitor.
    1. Release the clips and claws.
    2. Release the hook, and remove the cover assembly EyeSight monitor.
    G13079233Courtesy of SUBARU OF AMERICA, INC.

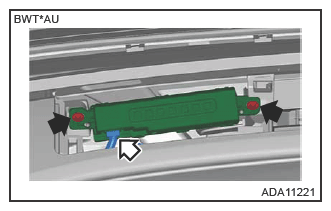

  3. Remove the EyeSight assist monitor.
  1. Remove the screws.
  2. Disconnect the connector and remove the EyeSight assist monitor.
G13079234Courtesy of SUBARU OF AMERICA, INC.
