Accessory Power Supply Socket: Removal: Front

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the socket assembly.

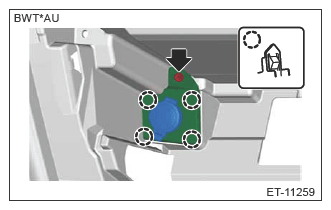

    1. Remove the screws, and release the claws.
      G13952127Courtesy of SUBARU OF AMERICA, INC.
    2. Detach the connectors and remove the panel socket assembly.

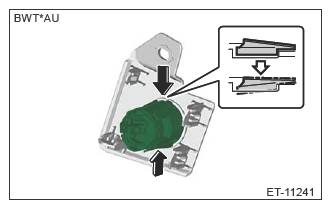

    3. While releasing the claw, press it in from the rear to remove the socket assembly.
      G13952128Courtesy of SUBARU OF AMERICA, INC.
