Telematics Button

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

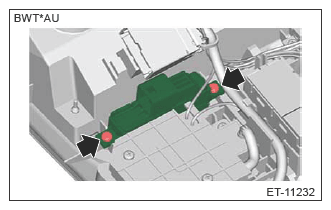

  3. Remove the screws and remove the telematics button.
    G13952111Courtesy of SUBARU OF AMERICA, INC.
