Front Fog Light Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the clips, and turn over the mud guard front.

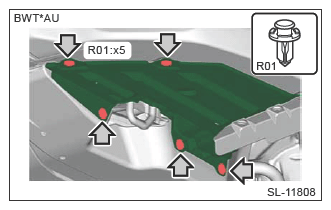

    G13951931Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the fog light assembly front.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
    3. Remove the fog light assembly front from the guide. (Sedan model)

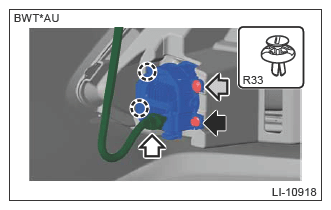

      G13951932Courtesy of SUBARU OF AMERICA, INC.
    4. Release the claws, and remove the fog light assembly front. (OUTBACK model)

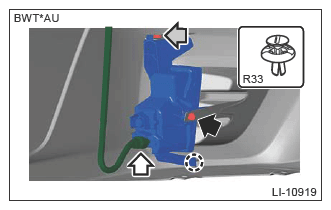

G13951933Courtesy of SUBARU OF AMERICA, INC.
