Turn Signal Light Bulb

CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the headlight assembly without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.

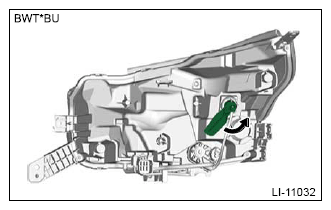

    • RH side
      G13951924Courtesy of SUBARU OF AMERICA, INC.

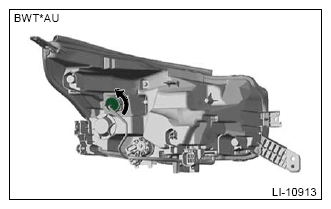

    • LH side
    G13951925Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the turn signal light bulb.
