Outback Model

CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the light assembly rear combination without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.

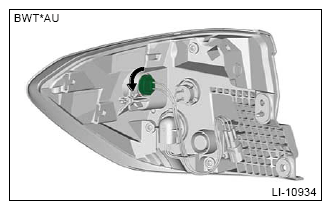

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
    G13951954Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the side marker light bulb.
