Glove Box Lid

  1. Remove the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  2. Replace the key cylinder.

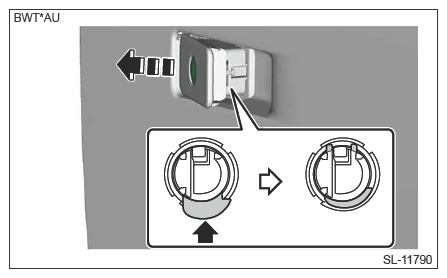

    1. Pull up the lock knob.
    2. While pressing in the metal plate, remove the key cylinder from the pocket COMPL to replace the key cylinder.
    G13953480Courtesy of SUBARU OF AMERICA, INC.
  3. Install the pocket COMPL. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>INSTALLATION .
