Power Seat Memory System (Diagnostics): Electrical Component Location: Location

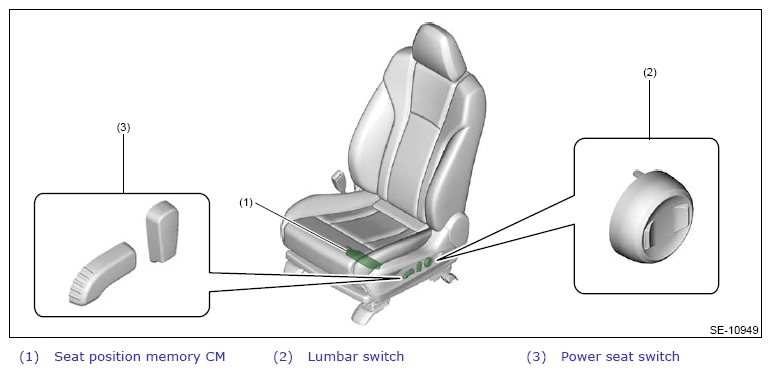

G13952964Courtesy of SUBARU OF AMERICA, INC.

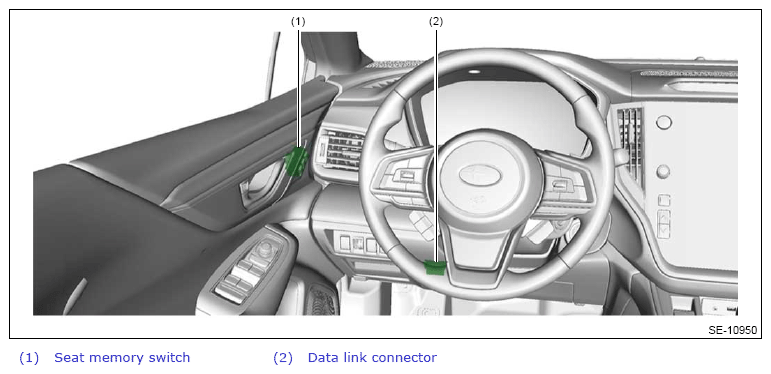

G13952965Courtesy of SUBARU OF AMERICA, INC.

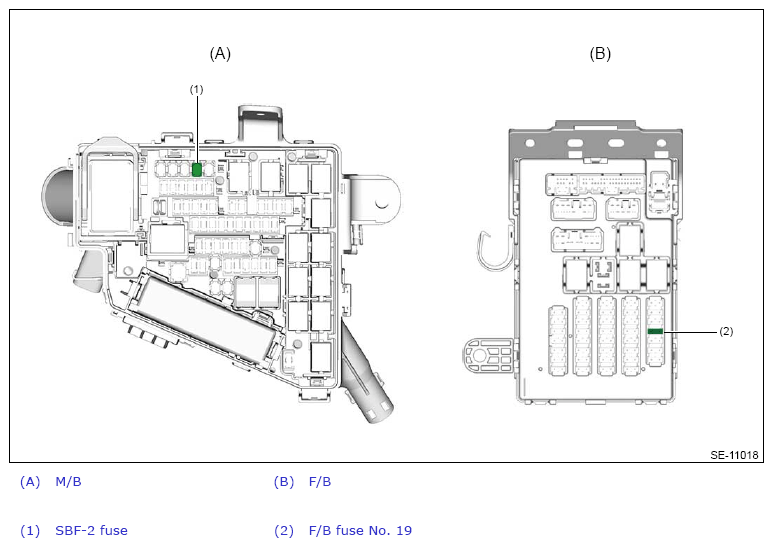

G13952966Courtesy of SUBARU OF AMERICA, INC.
