•Outback Model

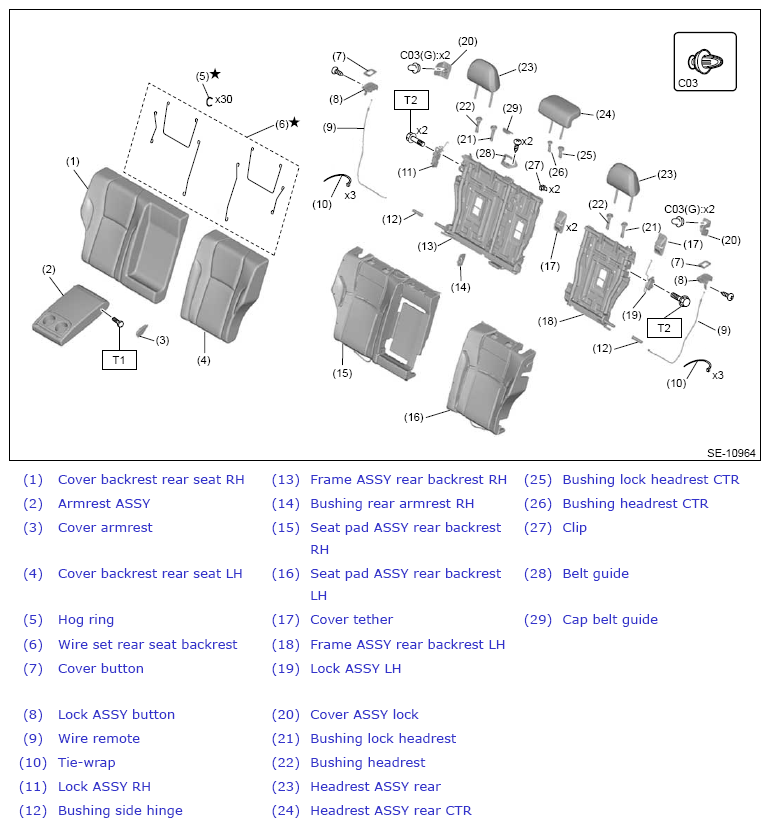

Fig 1: Rear Seat Components (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 24.5 (2.5, 18.1)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The seating sensor mat is integrated into the pad and frame assembly rear cushion.

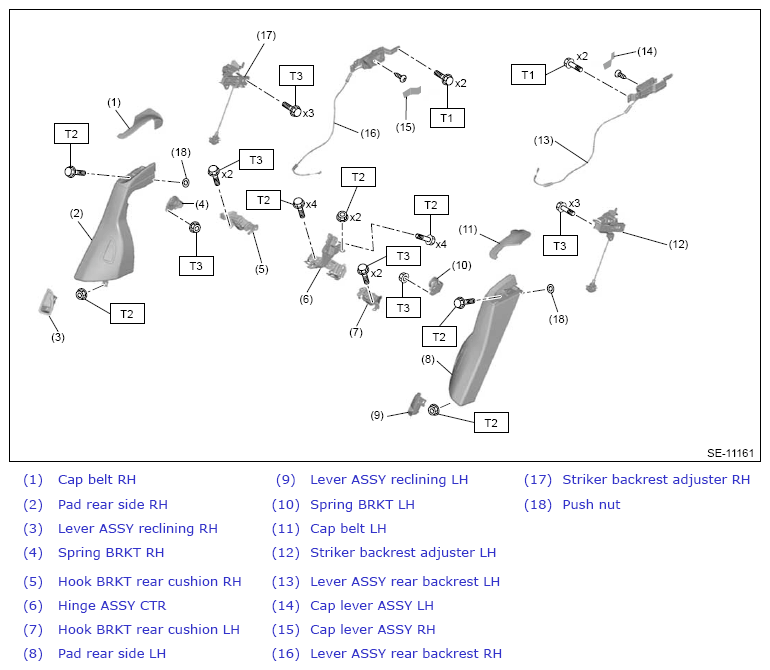

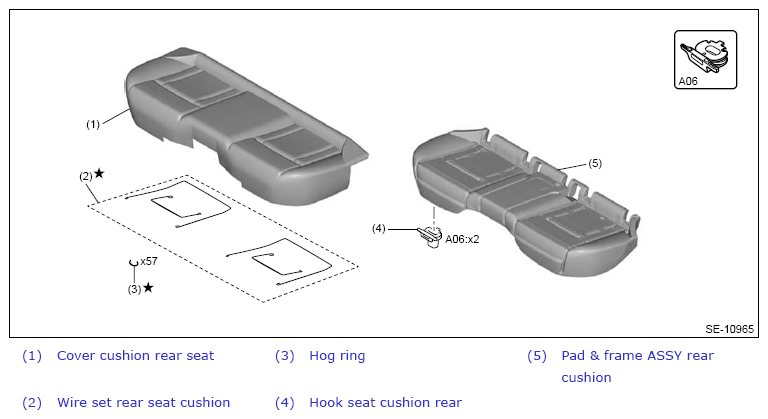

Fig 2: Rear Seat Components (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 24.5 (2.5, 18.1)

T3: 33 (3.4, 24.3)
