Rear Quarter Glass: Installation

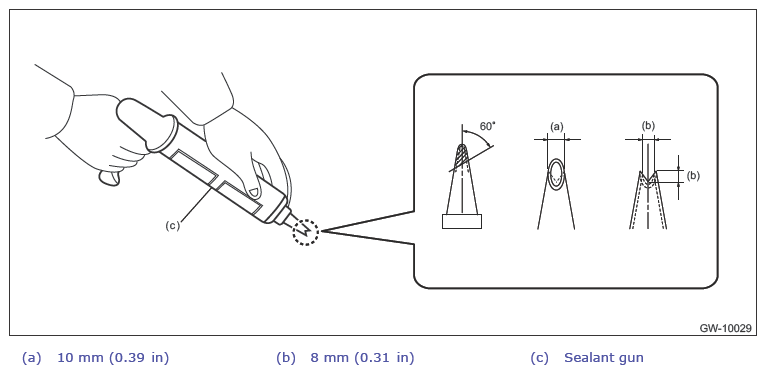

- Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.
- Smoothen and clean the adhesive surfaces of the glass rear quarter side and the body side, with the same procedures as for the glass windshield. Ref. to GLASS/WINDOW/MIRRORS>WINDSHIELD GLASS>INSTALLATION .

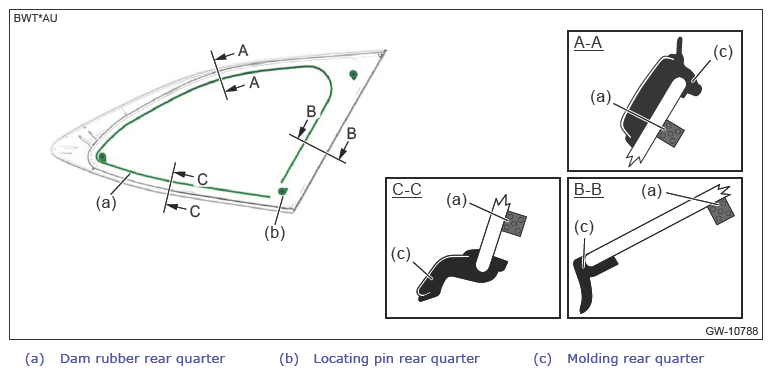

- Install a new dam rubber rear to the glass rear quarter.
- Install the glass rear quarter in the same procedure as for the glass windshield. Ref. to GLASS/WINDOW/MIRRORS>WINDSHIELD GLASS>INSTALLATION .

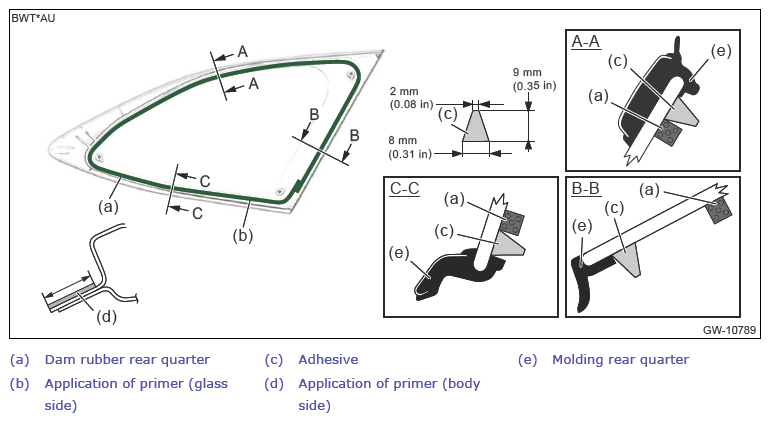

- Apply the primer to the adhesive surface of glass rear quarter side and body side using sponge.
- Apply adhesive to the end back surface of the glass rear quarter.CAUTION: Do not apply primer to adhesive remaining on the body side.
- Insert the locating pins rear quarter into the side panel holes, and install the glass rear quarter.
- Lightly press the entire perimeter of the glass rear quarter for tight fit.
- Make flush the adhesive surface jutted out using spatula.
- After completion of all work, allow the vehicle to stand for about 24 hours.NOTE:
- When opening/closing the door after the rear quarter glass was bonded, always lower the door glass assembly first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
- Install the trim panel assembly C pillar. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>INSTALLATION .
- Install the pad rear side. Ref. to SEATS>REAR SEAT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
