Rear Differential Mounting System

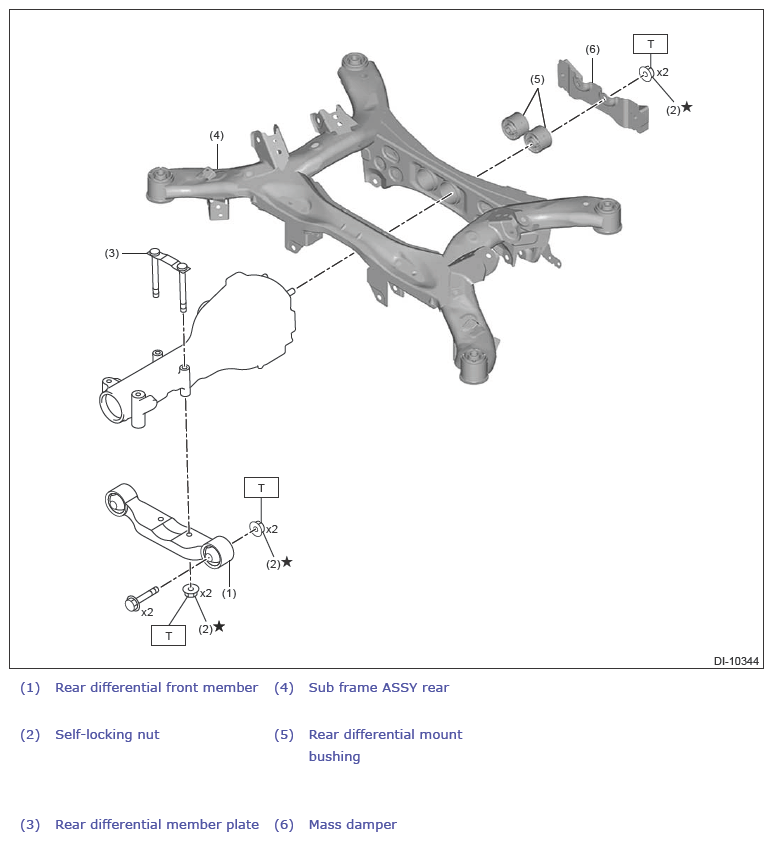

Fig 1: Exploded View Of Rear Differential Mounting System Components
G13949659Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VA-TYPE)>INSTALLATION .
