Keyless Access With Push Button Start System: Wiring Diagram

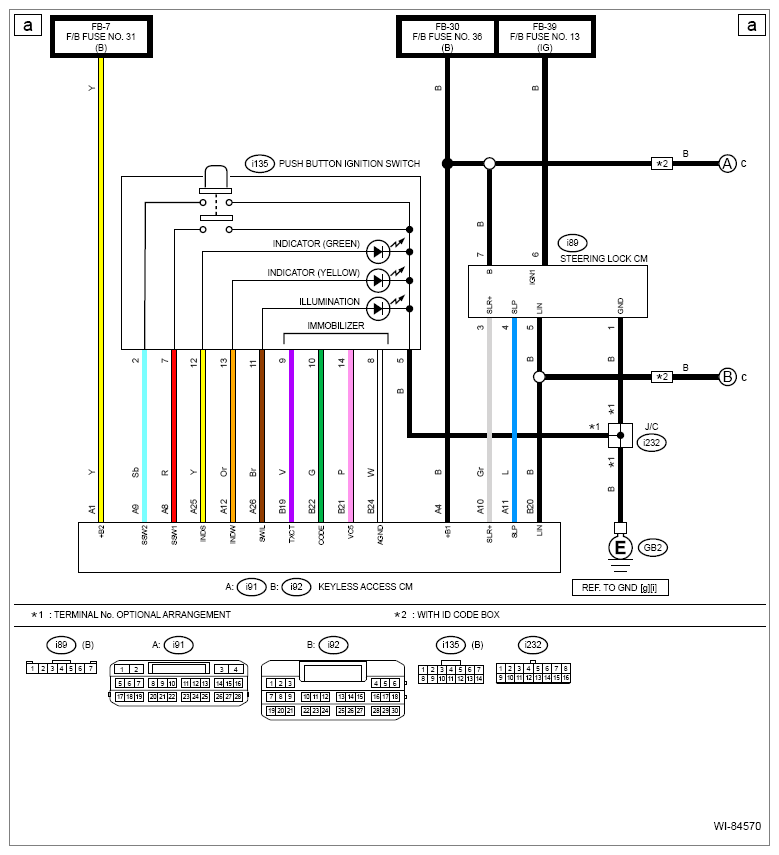

G13954268Courtesy of SUBARU OF AMERICA, INC.

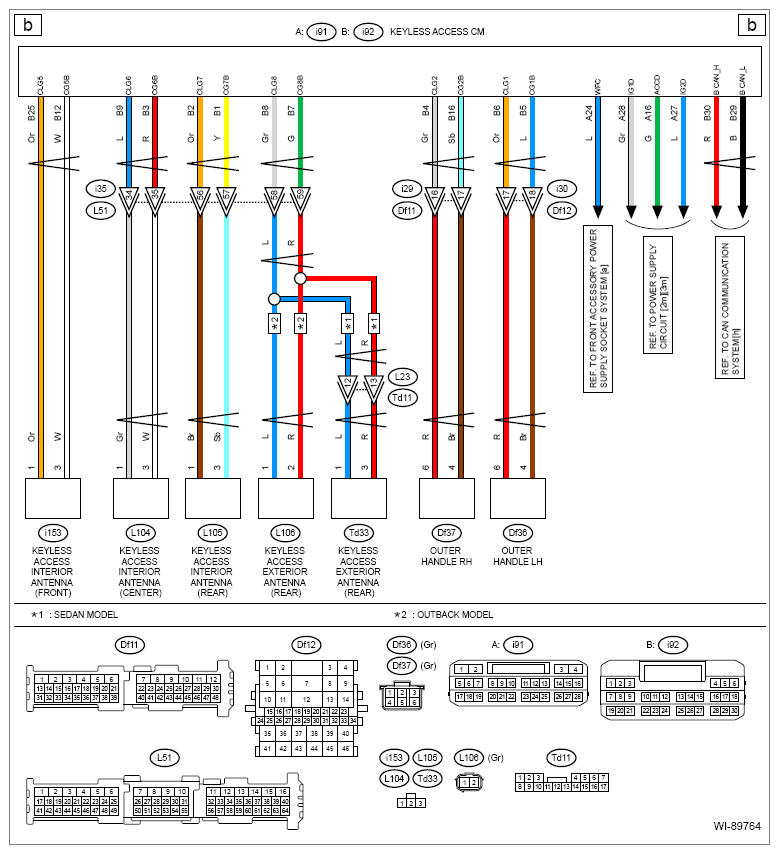

G13954269Courtesy of SUBARU OF AMERICA, INC.

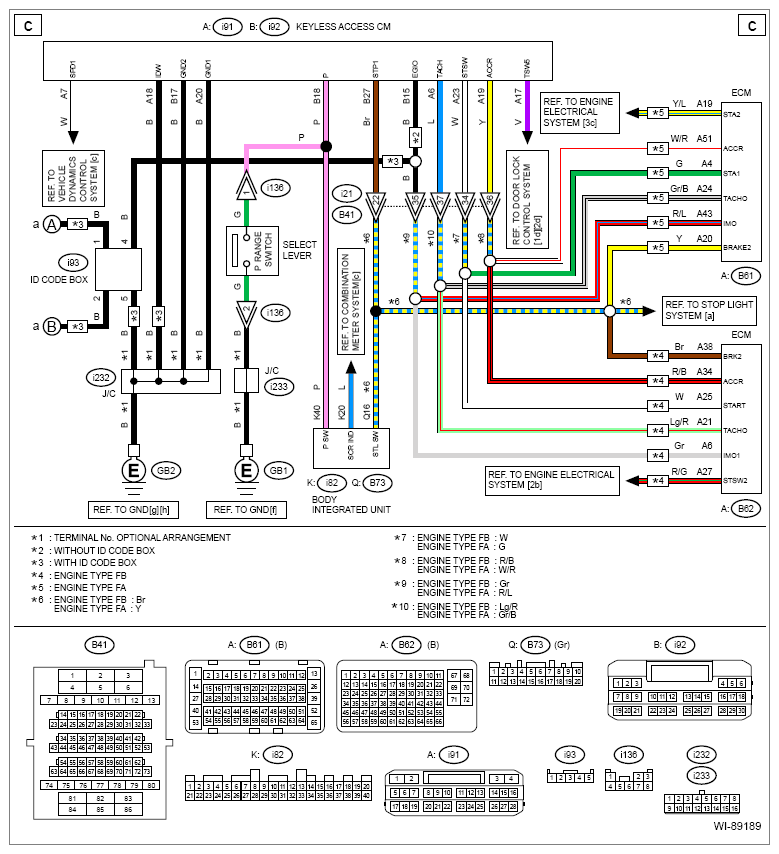

G13954270Courtesy of SUBARU OF AMERICA, INC.
