Drive Pinion: Installation

WARNING: This page is about a different variant/trim than selected.

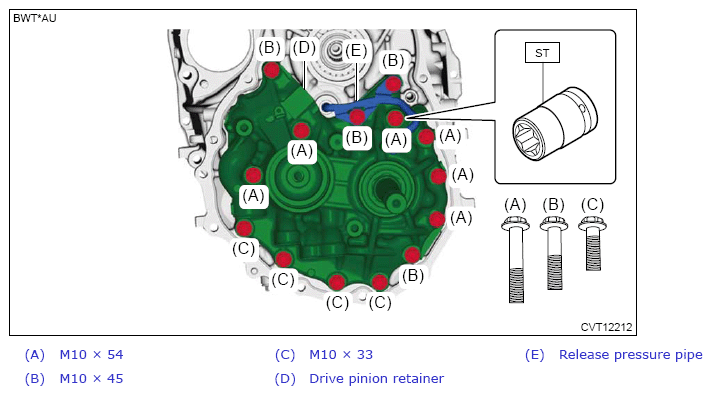

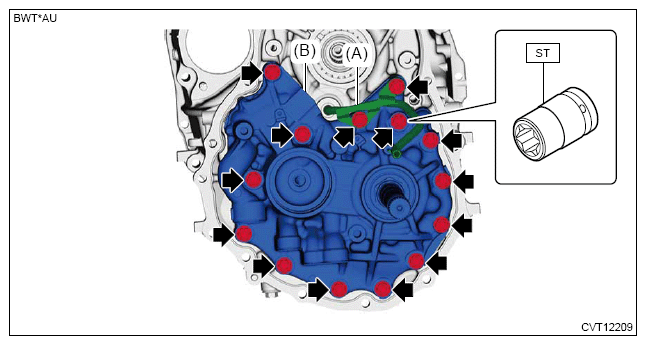

Using the ST, install the drive pinion retainer and the release pressure pipe.
NOTE: Apply liquid gasket and install the O-ring after checking and adjusting the tooth contact of hypoid gear set.

Preparation tool:

ST: SOCKET (E20) (18270KA020)

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Hypoid gear set backlash adjustment

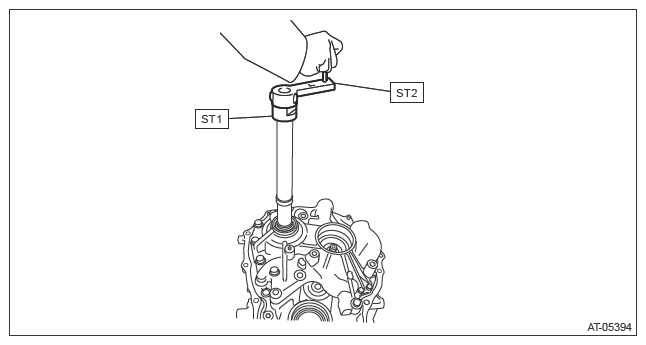

Rotate the drive pinion ten times or more using ST1 and ST2.

Preparation tool:

ST1: HOLDER (18667AA010)

ST2: WRENCH (499787700)

Courtesy of SUBARU OF AMERICA, INC.

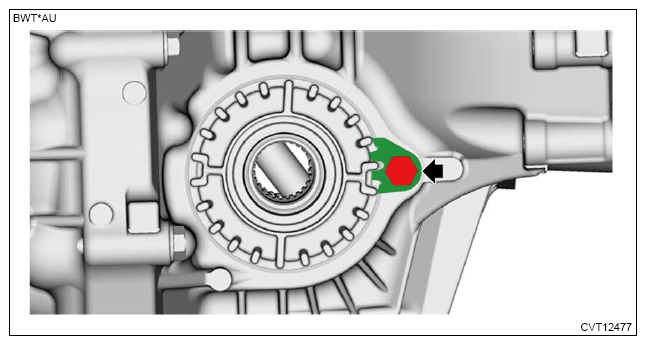

While rotating the drive pinion, loosen the differential side retainer RH using ST, and tighten the differential side retainer LH until the drive pinion does not rotate anymore.
NOTE: The backlash is "zero" when the drive pinion comes to the point where it doesn't rotate.

Preparation tool:

ST: WRENCH COMPL RETAINER (18658AA020)

Return the differential side retainer LH by 3 teeth and secure it with the lock plate.

Courtesy of SUBARU OF AMERICA, INC.

Tighten until the differential side retainer RH does not rotate anymore.
CAUTION: Do not tighten with excessive force.
Rotate the drive pinion 2 or 3 times.
Tighten the differential side retainer RH a further 1-3/4 teeth.
NOTE: This sets the preload.

Fix the differential side retainer RH with the lock plate.

Courtesy of SUBARU OF AMERICA, INC.

Attach the ST to the converter case.
NOTE: The ST is a SUBARU genuine part.

Preparation tool:

ST: AXLE SHAFT (38415AA070)

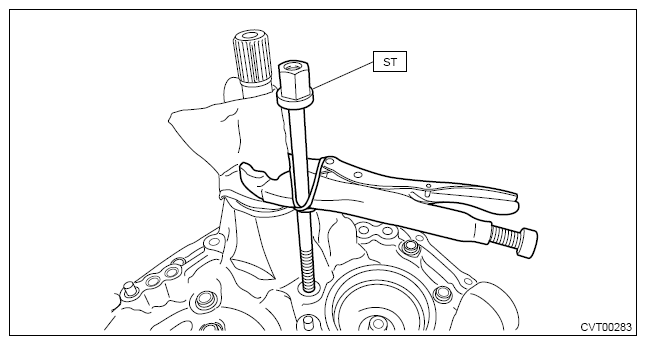

Install the ST to the drive pinion retainer, and wrap the drive pinion with cloth and pinch with vise pliers.

Using a tie-wrap or a wire, fix the vise pliers to the ST.

NOTE: Make sure the drive pinion does not move.

Preparation tool:

ST: COMPRESSOR SHAFT (18763AA000)

Courtesy of SUBARU OF AMERICA, INC.

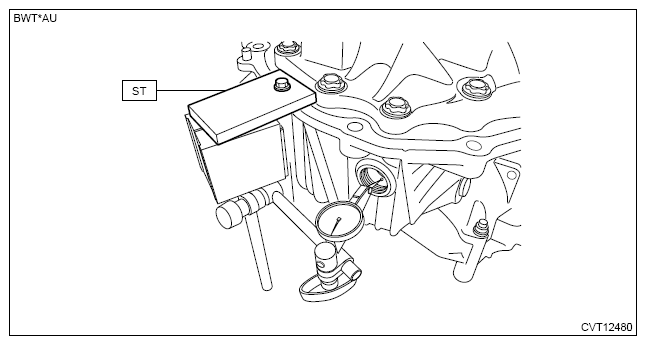

Measure the backlash using ST, dial gauge (lever type) and magnet stand.

Preparation tool:

ST: PLATE (498255400)

Backlash:

0.13 - 0.18 mm (0.005 - 0.007 in)

Courtesy of SUBARU OF AMERICA, INC.

If the backlash is outside the standard

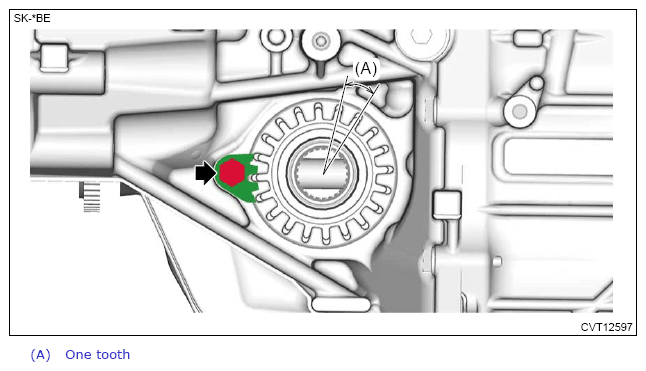

NOTE: Turning the differential side retainer by one tooth (a) changes the backlash approx. 0.05 mm (0.002 in).

Courtesy of SUBARU OF AMERICA, INC.

When the backlash is too small
Loosen the differential side retainer LH by the required numbers of teeth, and tighten the differential side retainer RH by the same numbers of teeth.
When the backlash is too large
Loosen the differential side retainer RH by the required numbers of teeth, and tighten the differential side retainer LH by the same numbers of teeth.

Remove the ST (compressor shaft) and vise pliers.

Checking and adjusting the tooth contact of hypoid gear set

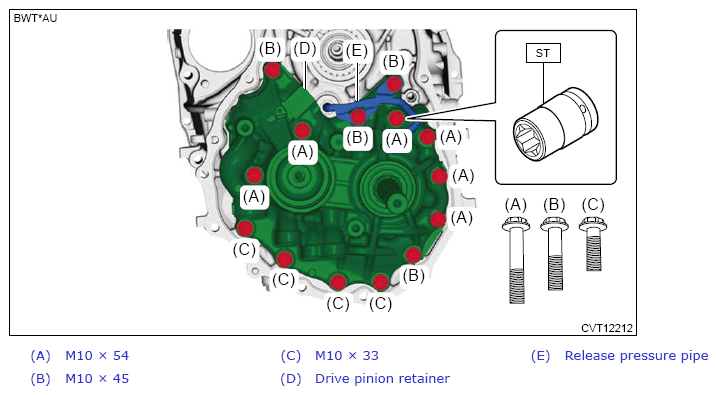

Using the ST, remove the release pressure pipe (A) and the drive pinion retainer (B).

Preparation tool:

ST: SOCKET (E20) (18270KA020)

Courtesy of SUBARU OF AMERICA, INC.

Apply lead-free red dye evenly on the three to four teeth of the driven gear.

Using the ST, install the drive pinion retainer and the release pressure pipe.

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Rotate the drive pinion back and forth several times using ST1 and ST2, and check the tooth contact pattern.

NOTE:

If proper tooth contact is not obtained, readjust the backlash of hypoid gear set and drive pinion shim.
For drive pinion shim adjustment, refer to the "ASSEMBLY". Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION>ASSEMBLY .
Wipe off the lead-free red dye completely after the check and adjustment are completed.

Preparation tool:

ST1: HOLDER (18667AA010)

ST2: WRENCH (499787700)

Courtesy of SUBARU OF AMERICA, INC.

Correct tooth contact

Tooth contact pattern is slightly shifted toward toe side under no-load rotation. (When driving, it moves towards the heel side.)

Courtesy of SUBARU OF AMERICA, INC.

Face contact

Cause: Excessive backlash

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Loosen the differential side retainer RH by the required numbers of teeth, and tighten the differential side retainer LH by the same numbers of teeth.

Otherwise, adjust the drive pinion shim thickness and move the drive pinion to the driven gear side.

Courtesy of SUBARU OF AMERICA, INC.

Flank contact

Cause: Too small backlash

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Loosen the differential side retainer LH by the required numbers of teeth, and tighten the differential side retainer RH by the same numbers of teeth.

Otherwise, adjust the drive pinion shim thickness and separate the drive pinion from the driven gear.

Courtesy of SUBARU OF AMERICA, INC.

Toe contact (inside contact)

Cause: Teeth contact area is too small.

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Adjust the drive pinion shim thickness and separate the drive pinion from the driven gear.

Courtesy of SUBARU OF AMERICA, INC.

Heel contact (outside end contact)

Cause: Teeth contact area is too small.

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Adjust the drive pinion shim thickness and move the drive pinion to the driven gear side.

Courtesy of SUBARU OF AMERICA, INC.

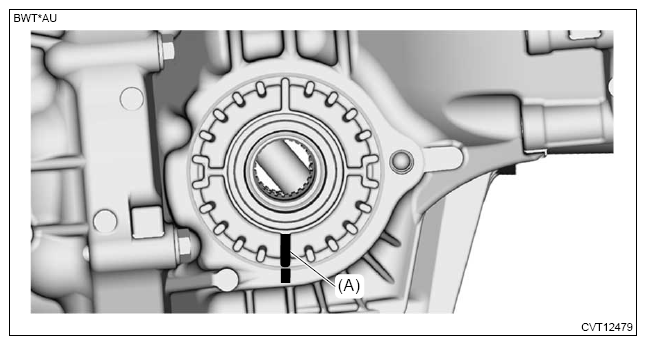

Put alignment marks (A) on the converter case and differential side retainer.

Courtesy of SUBARU OF AMERICA, INC.

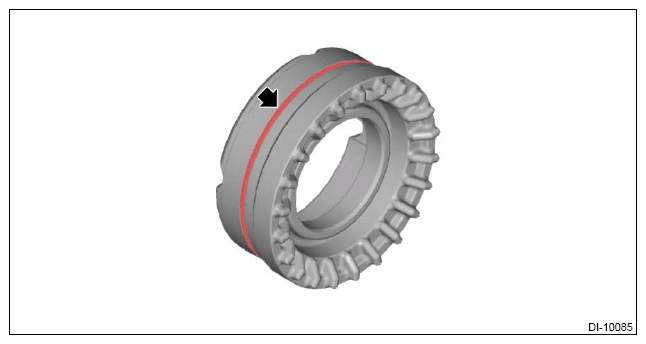

Install a new O-ring to the differential side retainer.
NOTE: Perform this procedure one side first, then the other side.
1. Using the ST, loosen the differential side retainer to the position where the mounting groove of the O-ring appears.
  NOTE: Record the number of the turns loosened.

  Preparation tool:

  ST: WRENCH COMPL RETAINER (18658AA020)

  (2) Fit a new O-ring, and tighten the differential side retainer into the position before it was loosened.

  NOTE: Apply differential gear oil to the threads of the differential side retainer and O-rings.
Courtesy of SUBARU OF AMERICA, INC.
Install the lock plate.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the release pressure pipe (A) and the drive pinion retainer (B).
Preparation tool:

ST: SOCKET (E20) (18270KA020)

Courtesy of SUBARU OF AMERICA, INC.

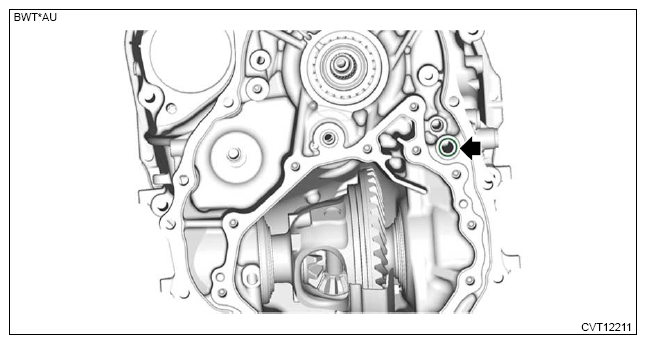

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

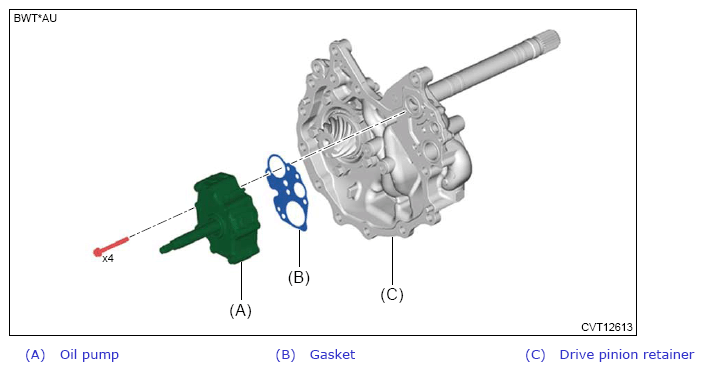

Using a new gasket, install the oil pump.
NOTE: Apply CVTF to the threaded portion of the bolts and seat surface.

Tightening torque:

8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

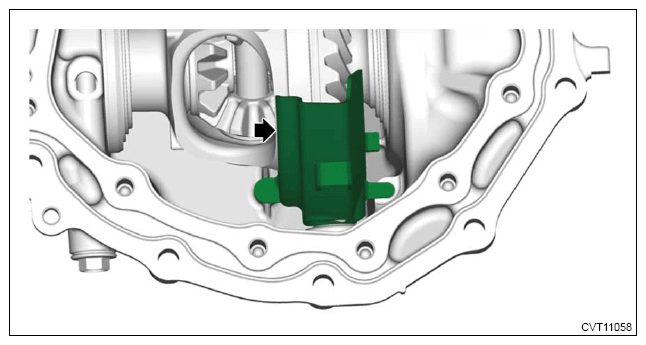

Install the oil baffle.

Courtesy of SUBARU OF AMERICA, INC.

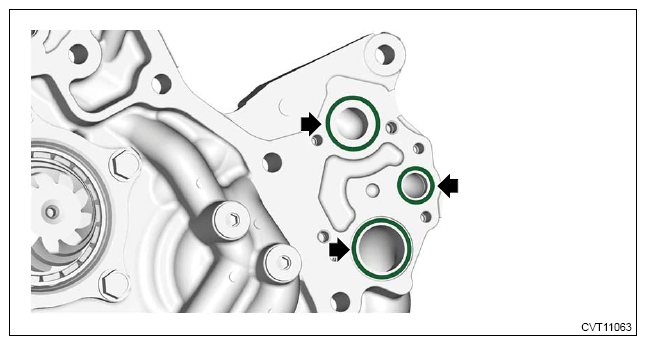

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

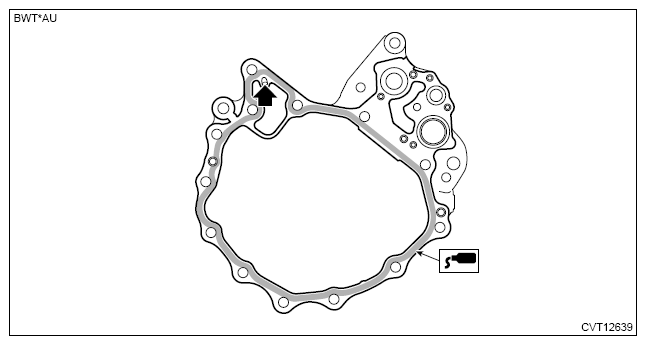

Apply liquid gasket to the mating surface of the converter case as shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the liquid gasket seal surfaces of the converter case and the drive pinion retainer.
- Be careful not to block the arrowed hole when applying liquid gasket.
- Install within 5 min. after applying liquid gasket.
Preparation items:

Liquid gasket: THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

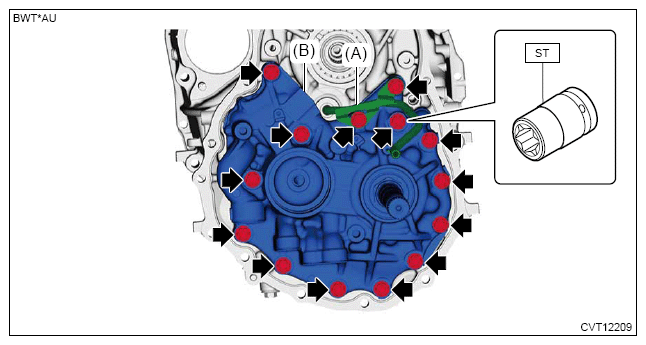

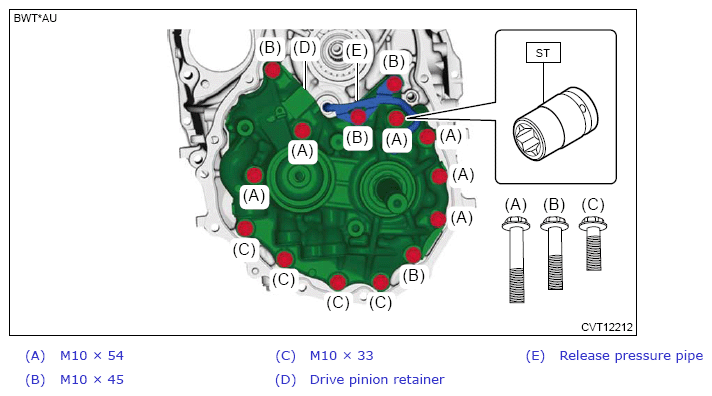

Using the ST, install the drive pinion retainer and the release pressure pipe to the converter case.
Preparation tool:

ST: SOCKET (E20) (18270KA020)

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Select the primary pulley shim when the drive pinion retainer or converter case is replaced.

NOTE: It is not necessary when the primary pulley and secondary pulley are replaced.

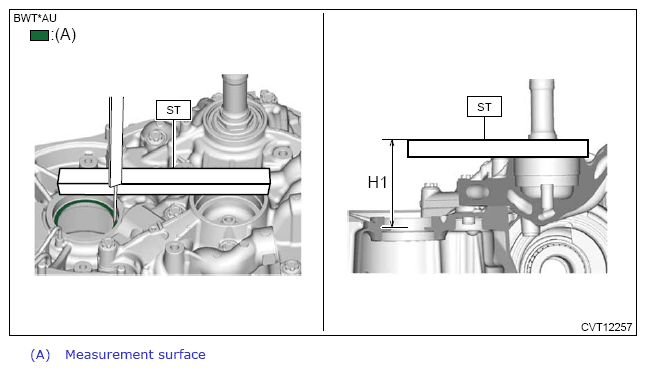

Using the ST, measure the height "H1" from the ST end face to the primary pulley bearing catch surface.

NOTE: Measure at four points and calculate the average.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

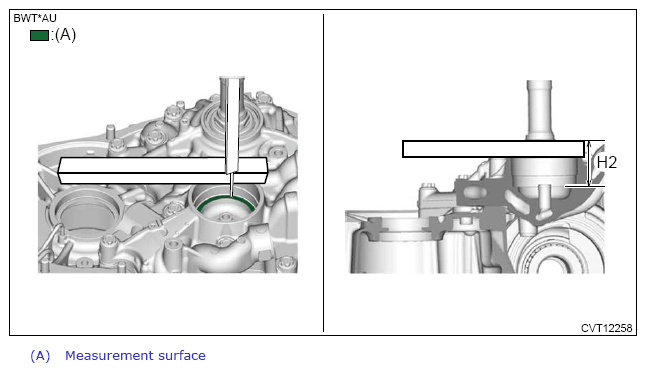

Measure the height "H2" from the ST end face to the secondary pulley bearing catch surface.

NOTE: Measure at four points and calculate the average.

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, measure the dimension "B" from the primary pulley bearing catch surface to the secondary pulley bearing catch surface.

B = H1 - H2

B	Dimension (mm (in)) from the primary pulley bearing catch surface to the secondary pulley bearing catch surface
H1	Measured value (mm (in)) of step (1)
H2	Measured value (mm (in)) of step (2)

Using the following calculation and selection criteria table, select an appropriate thickness of the primary pulley shim.
NOTE: Adjust using 1 to 2 pieces.

C = A - B

C	Dimension difference (mm (in))
A	Calculated value (mm (in)) of removal step 2 (4)
B	Calculated value (mm (in)) of step (3)

PRIMARY PULLEY SHIM SELECTION CRITERIA FOR CALCULATED VALUES

Dimension difference (mm (in))	Thickness of primary pulley shim to be selected
0.281 - 0.300 (0.01106 - 0.01181)	Select the shim 0.3 mm (0.012 in) thicker than the primary pulley shim before replacement.
0.181 - 0.280 (0.00712 - 0.01102)	Select the shim 0.2 mm (0.008 in) thicker than the primary pulley shim before replacement.
0.081 - 0.180 (0.00318 - 0.00708)	Select the shim 0.1 mm (0.004 in) thicker than the primary pulley shim before replacement.
0.080 - -0.070 (0.00315 - -0.00275)	Select a new shim of the same thickness as the primary pulley shim before replacement.
-0.071 - -0.170 (-0.00 279 - -0.00669)	Select the shim 0.1 mm (0.004 in) thinner than the primary pulley shim before replacement.
-0.171 - -0.230 (-0.00673 - -0.00905)	Select the shim 0.2 mm (0.008 in) thinner than the primary pulley shim before replacement.
-0.231 - -0.300 (-0.00909 - -0.01181)	Select the shim 0.3 mm (0.012 in) thinner than the primary pulley shim before replacement.

Install the primary pulley and secondary pulley. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
