Extension Case: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE OIL SEAL>REPLACEMENT .

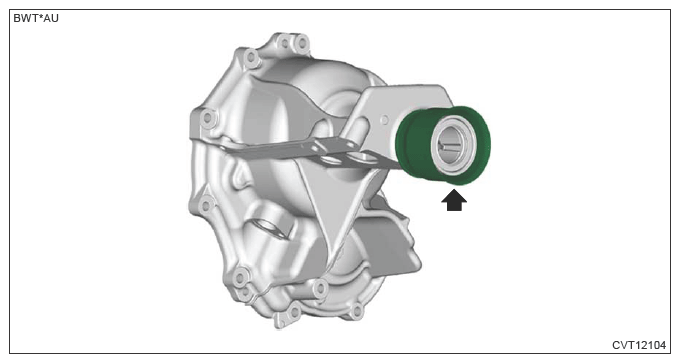

  2. Install the dust cover.
G13951186Courtesy of SUBARU OF AMERICA, INC.
