Extension Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

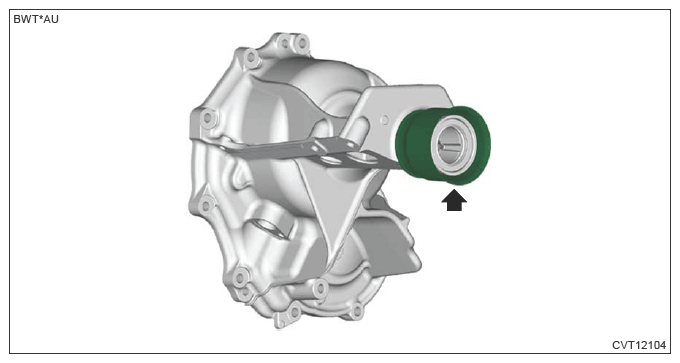

  1. Remove the dust cover.
    G13951185Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE OIL SEAL>REPLACEMENT .
