Front Reduction Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Using the ST and a press, press-fit a new ball bearing (front side).
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST: INSTALLER (18651AA000)

Courtesy of SUBARU OF AMERICA, INC.
Press-fit a new ball bearing (rear side) using ST1, ST2 and a press.
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST1: INSTALLER (499757002)

ST2: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.

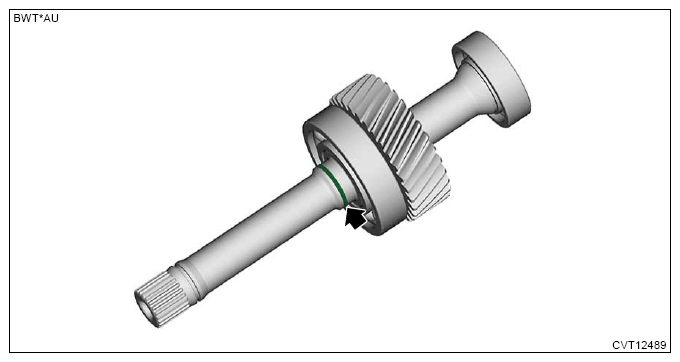

Install a new seal ring.
NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.

Courtesy of SUBARU OF AMERICA, INC.
