Front Reduction Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.

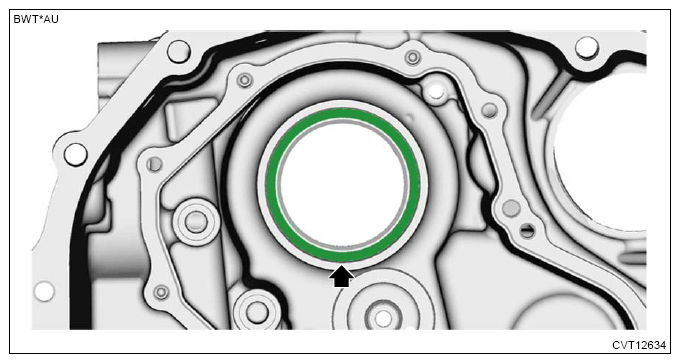

  1. Install the front reduction driven gear shim (rear side).
    G13951472Courtesy of SUBARU OF AMERICA, INC.

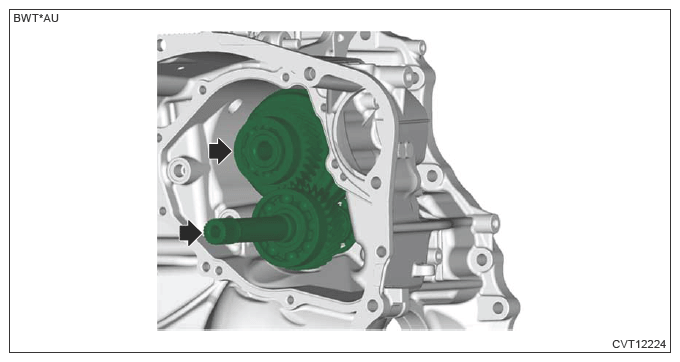

  2. Install the front reduction drive gear and front reduction driven gear as a single unit.

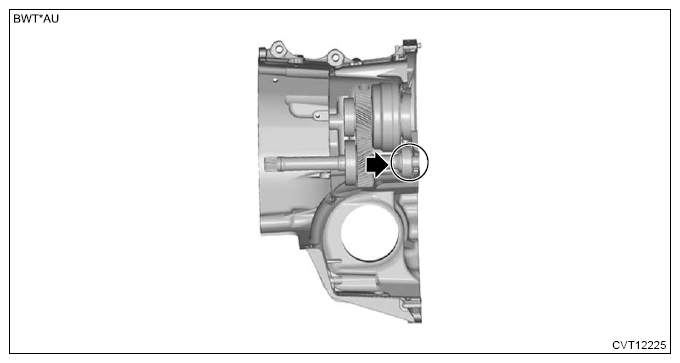

    NOTE: Make sure that the ball bearing (rear side) of the front reduction driven gear is fully in contact with the converter case.
    G13951473Courtesy of SUBARU OF AMERICA, INC.
    G13951474Courtesy of SUBARU OF AMERICA, INC.
  3. Install the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE COVER>INSTALLATION .
