Front Reduction Driven Gear: Assembly
WARNING: This page is about a different variant/trim than selected.
- Check the clutch clearance.
- Stack the driven plate, drive plate and retaining plate on the surface table.

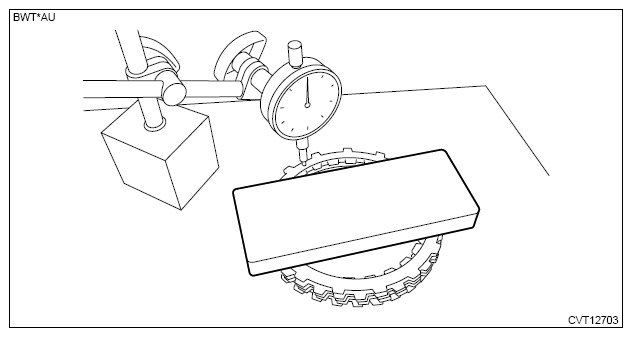

- Set the magnet stand and dial gauge to the surface table, and contact the dial gauge on the retaining plate to adjust the reading to the zero point.
- Measure the compression amount.
- When using ST

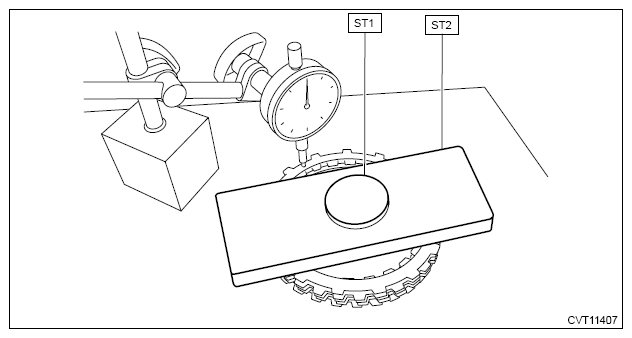

- Place the ST1 and ST2 on the retaining plate.CAUTION: If the ST1 and ST2 are deformed, cracked, scratched or chipped, replace with new ones.
Preparation tool:
ST1: OIL SEAL INSTALLER (398437700)
ST2: GAUGE (499575600)

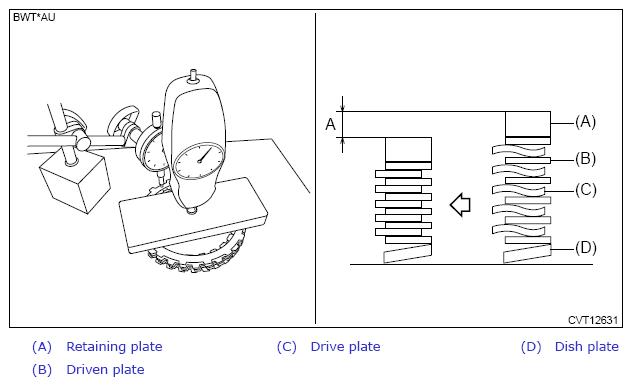

- Press the center of ST by applying a force of 105 N using push/pull gauge, and then measure the compression amount "A".NOTE: Measure at four points at 90° intervals and calculate the average.
- When not using ST
- Scale and record the weight "Q" of a flat board which will be put on the retaining plate.NOTE:
- Use a stiff board which does not bend against load as a flat board to be put on the retaining plate.
- Use a flat board weighing less than 13.3 kg (29.2 lb).
- Put the flat board on retaining plate.
- Using the following formula, calculate load "N", a force of pressing with push/pull gauge.
N = 130 N (13.3 kg, 29.2 lb) - Q

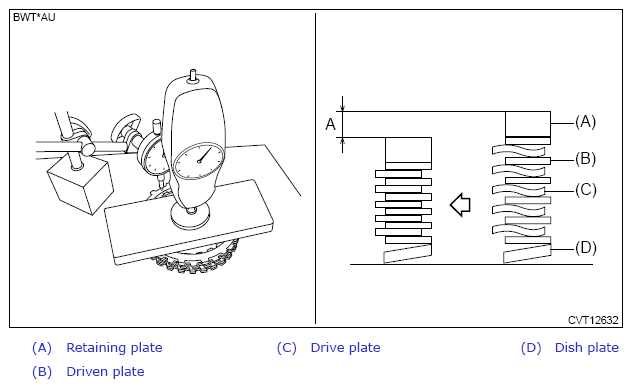

N Load 130 N (13.3 kg, 29.2 lb) Load applied to clutch plate Q Board weight - Press the center of board by applying a force of "N" using push/pull gauge, and then measure the compression amount "A".NOTE: Measure at four points at 90° intervals and calculate the average.

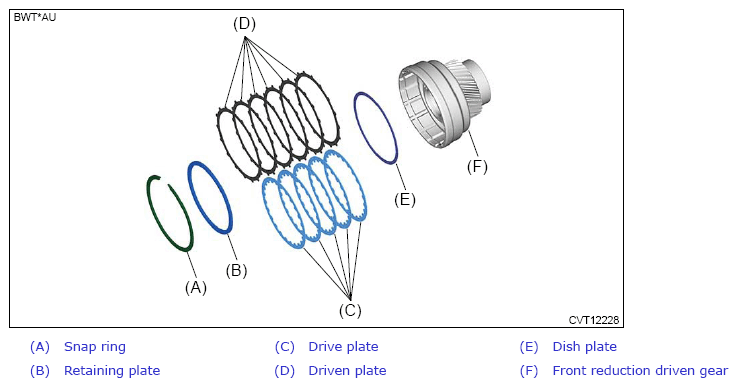

- Install the dish plate, driven plate, drive plate, retaining plate and snap ring.NOTE: Face the painted surface of dish plate toward the driven plate side.

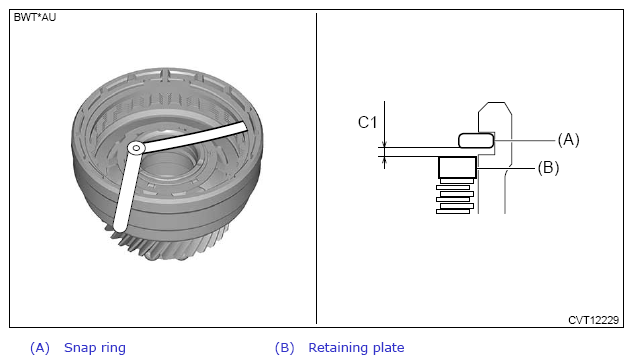

- Measure the clearance "C1" between snap ring and retaining plate using a thickness gauge.NOTE: Before measuring, press down the whole circumference of retaining plate using your finger.
- Using the following calculation, calculate the clutch clearance "C".
Service limit:
3.36 mm (0.133 in)
C = A + C1
C Clutch clearance (mm (in)) A Measured value (mm (in)) of (3) C1 Measured value (mm (in)) of (5) - If the value exceeds the limit, perform the following operations.
- Measure thickness of the retaining plate.
- Replace the drive plate and driven plate with new parts, and then perform measurement from step (1) again.
Initial standard:
2.4 - 2.8 mm (0.09 - 0.11 in)
- If it exceeds the initial standard value, adjust the thickness of retaining plate to be within the initial standard value.
- Using a press, press-fit a new ball bearing.NOTE: Apply CVTF to the press-fitting area.

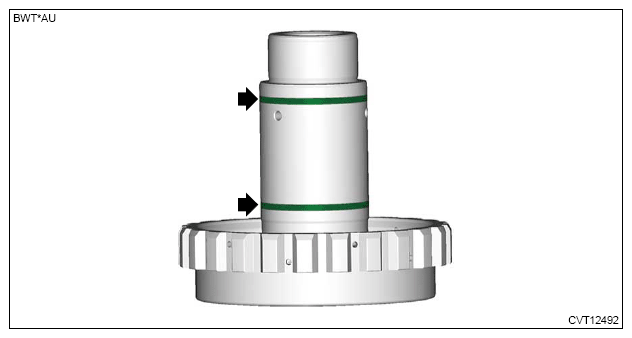

- Install a new seal ring.NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.

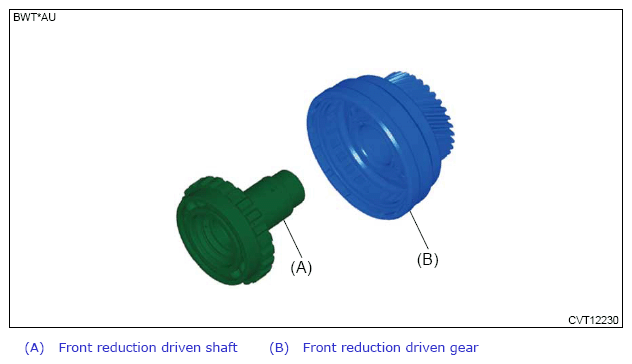

- Install the front reduction driven shaft.

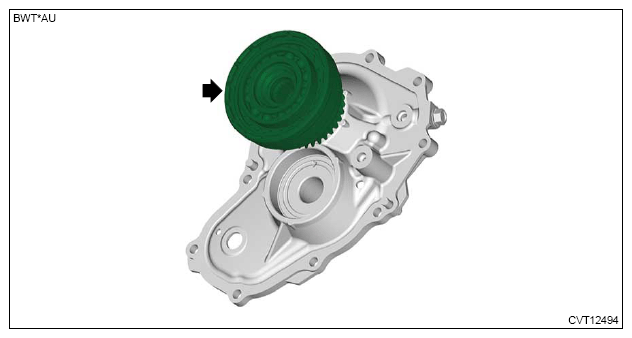

- Install the front reduction driven gear.

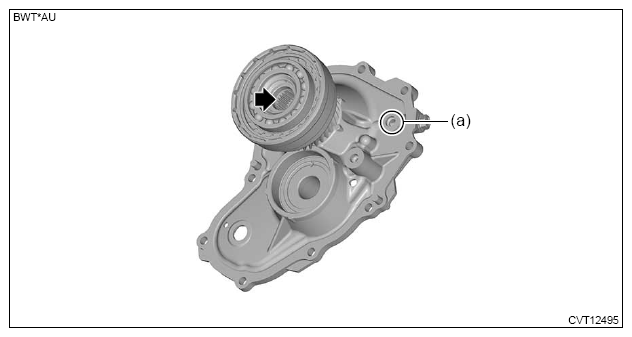

- Blow compressed air through the hole shown in the figure, and check the piston operation of the front reduction driven gear.NOTE: Hold the area (a) with a cloth.
