Electric Oil Pump
WARNING:
This page is about a different variant/trim than selected.

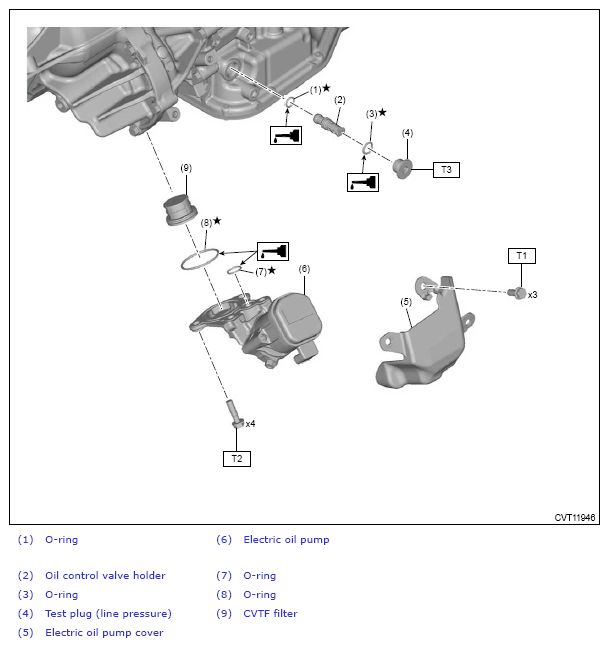

Fig 1: Electric Oil Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 22 (2.2, 16.2)
T3: 50 (5.1, 36.9)
Courtesy of SUBARU OF AMERICA, INC.
