Inhibitor Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily connect the inhibitor switch, and connect the connector.
Install the shifter arm and fix with a new spring pin.

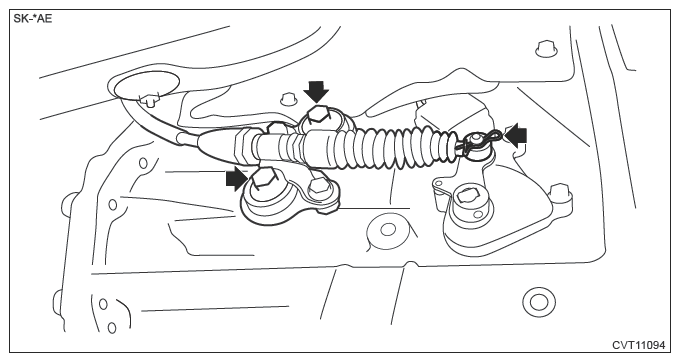

Connect the select cable to the transmission main body.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Set the washer before installing the snap pin.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Adjust the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>ADJUSTMENT .
Install the mat center tray.
Shift the select lever to "P range".
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
