Primary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: If water or oil contacts the connector terminal of primary speed sensor, replace it with a new part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

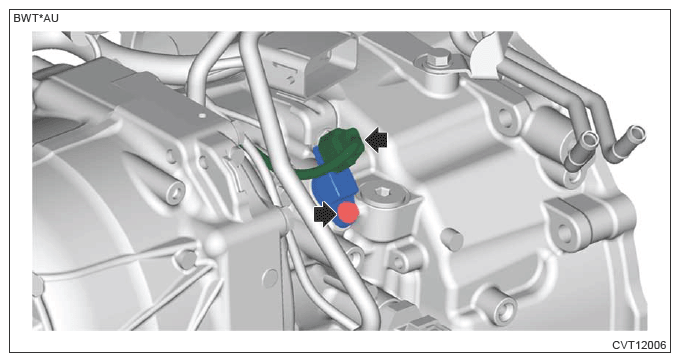

Disconnect the connector, and remove the primary speed sensor.

Courtesy of SUBARU OF AMERICA, INC.
