Reduction Driven Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

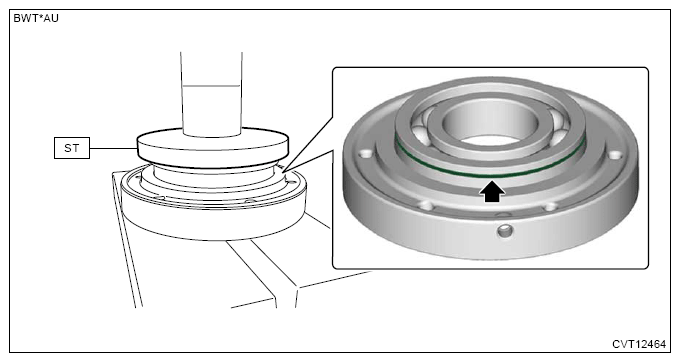

Using the ST and a press, press-fit a new ball bearing.
NOTE:
- Press-fit into the position where it contacts the snap ring.
- Apply CVTF to the press-fitting area.
Preparation tool:

ST: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, press-fit the bearing retainer.
Preparation tool:

ST: INSTALLER (398177700)

Courtesy of SUBARU OF AMERICA, INC.
