Reduction Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bearing retainer using ST1, ST2, ST3 and a press.
    CAUTION: Be careful not to drop the reduction driven gear.

    Preparation tool:

    ST1: REMOVER (899864100)

    ST2: SEAT (398497701)

    ST3: BEARING REMOVER (18767AA000)

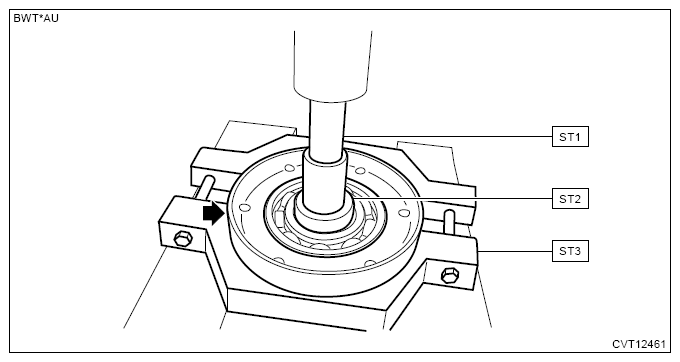

    G13951311Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing using ST1, ST2, ST3 and a press.
    CAUTION: Be careful not to drop the reduction driven gear.

    Preparation tool:

    ST1: REMOVER (899864100)

    ST2: SEAT (398497701)

    ST3: REMOVER (498077600)

G13951312Courtesy of SUBARU OF AMERICA, INC.
