Torque Converter: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

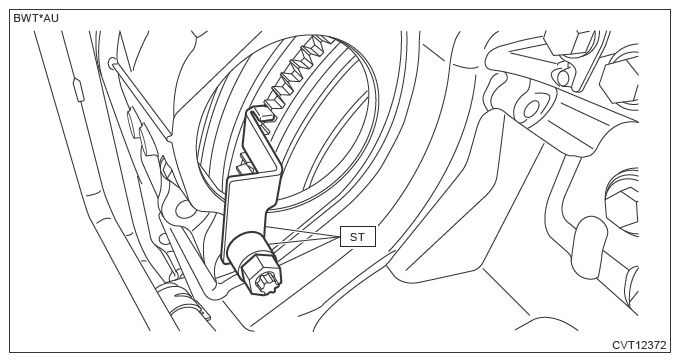

  2. Remove the ST from converter case.

    Preparation tool:

    ST: STOPPER SET (498277200)

    G13951153Courtesy of SUBARU OF AMERICA, INC.

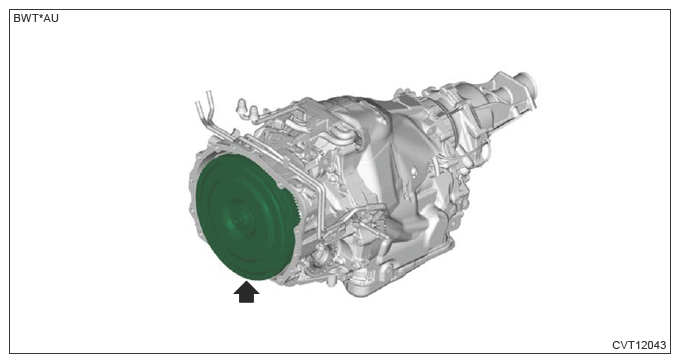

  3. Pull out the torque converter horizontally.
    CAUTION: Be careful not to scratch the inside of engaging parts.
    G13951154Courtesy of SUBARU OF AMERICA, INC.

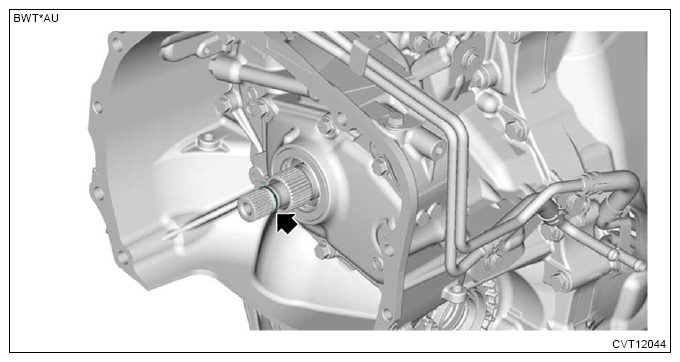

  4. Remove the O-rings.
G13951155Courtesy of SUBARU OF AMERICA, INC.
