Transfer Clutch: Disassembly

WARNING: This page is about a different variant/trim than selected.

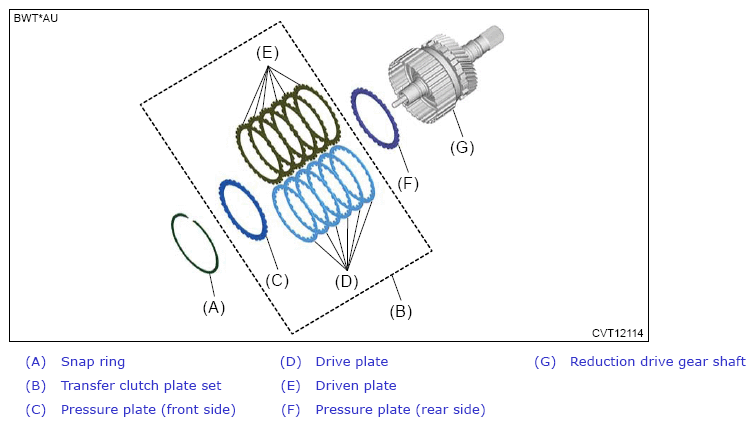

Remove the snap ring, and remove the transfer clutch plate set and pressure plate (rear side).

Courtesy of SUBARU OF AMERICA, INC.

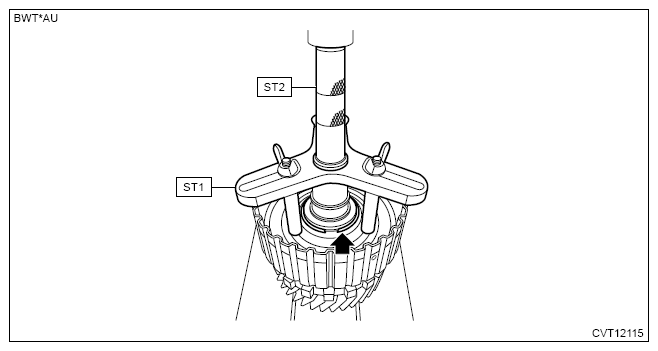

Compress the return spring using the ST1, ST2 and a press to remove the snap ring.
Preparation tool:

ST1: COMPRESSOR SPECIAL TOOL (18762AA001)

ST2: INSTALLER (18657AA000)

Courtesy of SUBARU OF AMERICA, INC.

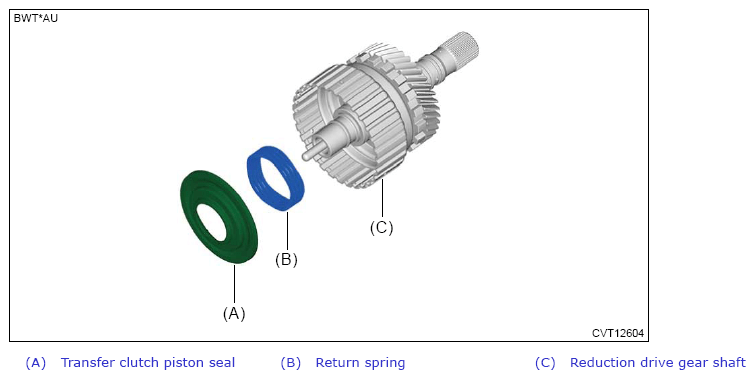

Remove the transfer clutch piston seal and return spring.

Courtesy of SUBARU OF AMERICA, INC.

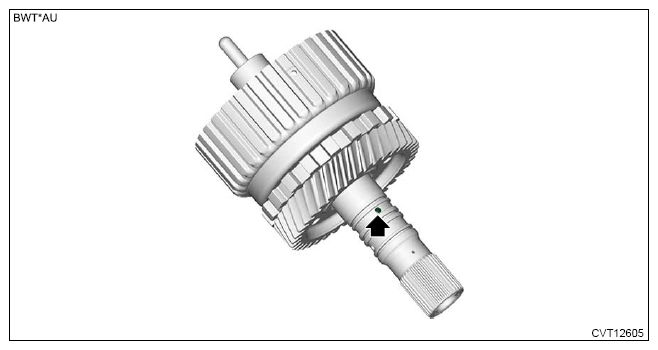

Blow compressed air through the hole shown in the figure, and remove the transfer clutch piston.
NOTE: Plug all holes except for the one used for blowing compressed air.

Courtesy of SUBARU OF AMERICA, INC.

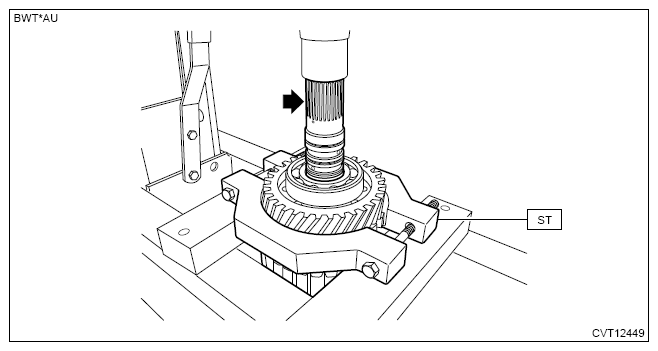

Remove the reduction drive gear shaft using the ST and a press.
CAUTION: Be careful not to drop the reduction drive gear shaft.

NOTE: Let the ST sit on the parking gear.

Preparation tool:

ST: BEARING REMOVER (18767AA000)

Courtesy of SUBARU OF AMERICA, INC.

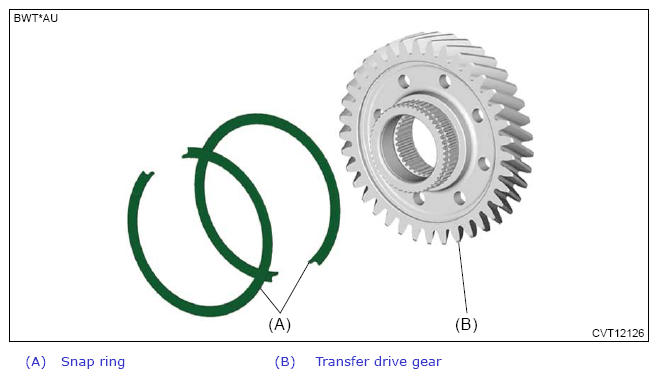

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST1, ST2 and a press, remove the transfer drive gear.
CAUTION: Be careful not to drop the transfer drive gear.

Preparation tool:

ST1: INSTALLER (899580100)

ST2: BEARING REMOVER (18767AA000)

Courtesy of SUBARU OF AMERICA, INC.

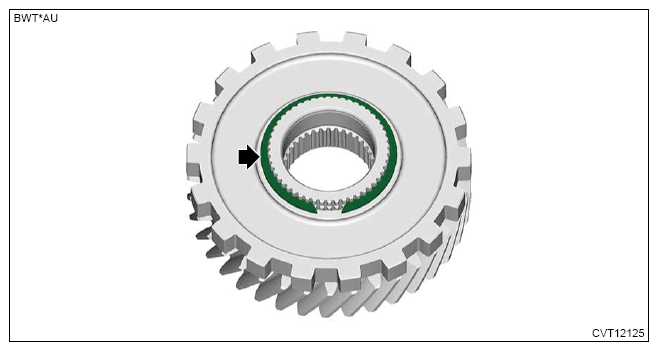

Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

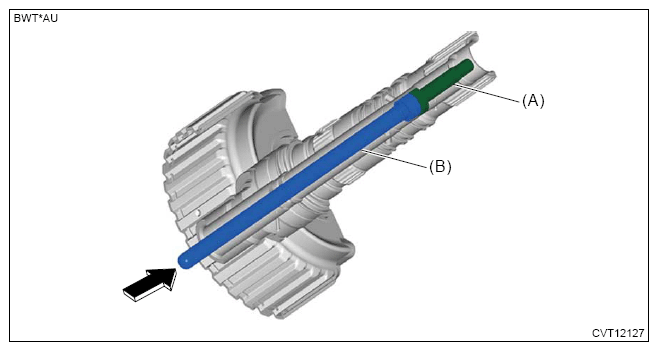

Apply force from the direction of arrow, and remove the oil separate pipe (A) and oil pipe (B).

Courtesy of SUBARU OF AMERICA, INC.

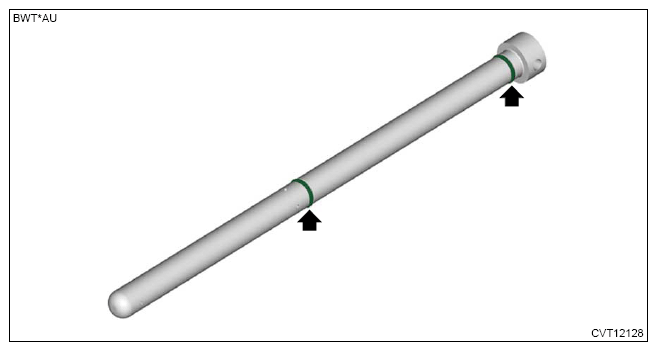

Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
