Transfer Clutch: Installation

WARNING: This page is about a different variant/trim than selected.

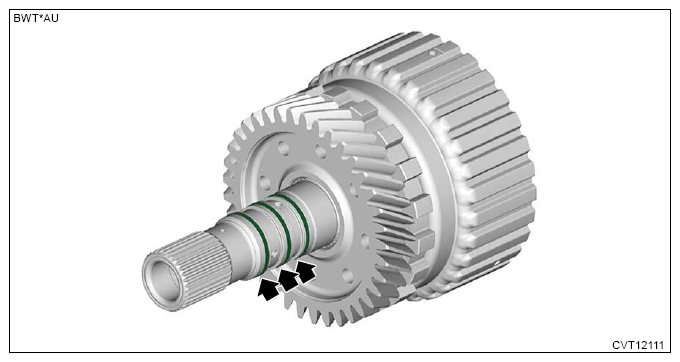

Install a new seal ring.
NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.
Courtesy of SUBARU OF AMERICA, INC.
Install the reduction drive gear shaft.

Courtesy of SUBARU OF AMERICA, INC.

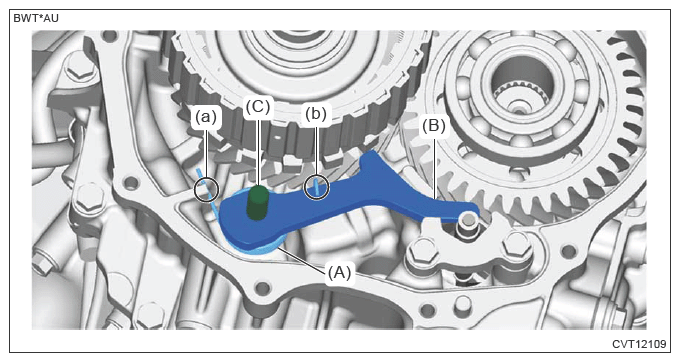

Install the return spring (A), parking pawl (B) and shaft (C).
NOTE:
- Make sure that the end (a) of return spring contacts the rib.
- Make sure that the end (b) of return spring is sticking out of the parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
