Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

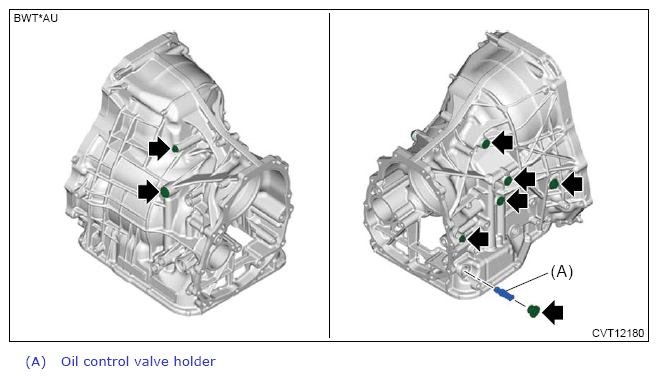

Remove each plug and oil control valve holder.

Courtesy of SUBARU OF AMERICA, INC.

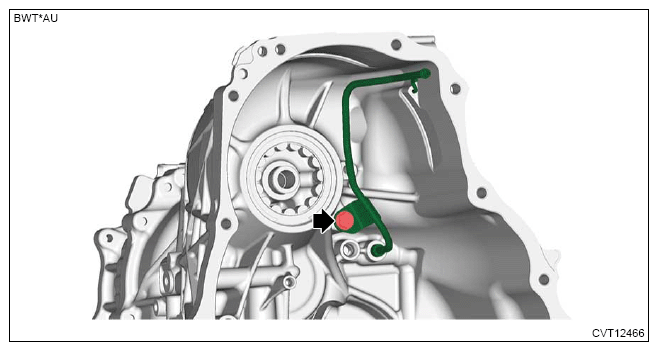

Remove the lubrication pipe.

Courtesy of SUBARU OF AMERICA, INC.

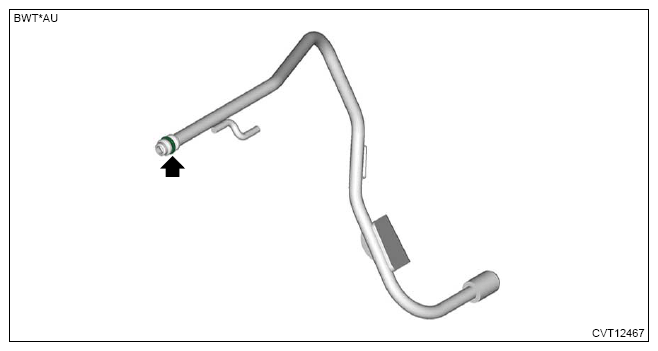

Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

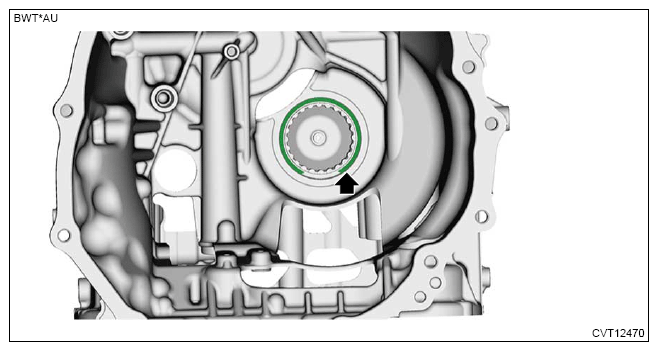

Remove the snap ring on the primary pulley side.

Courtesy of SUBARU OF AMERICA, INC.

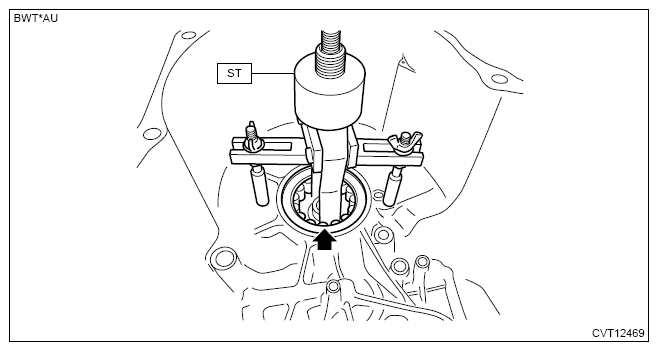

Using the ST, remove the roller bearing.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

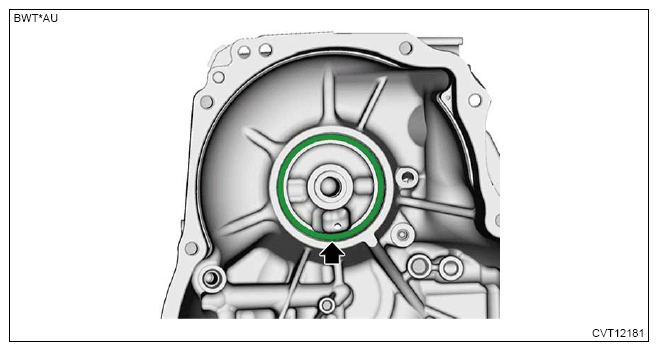

Remove the spacer.

Courtesy of SUBARU OF AMERICA, INC.

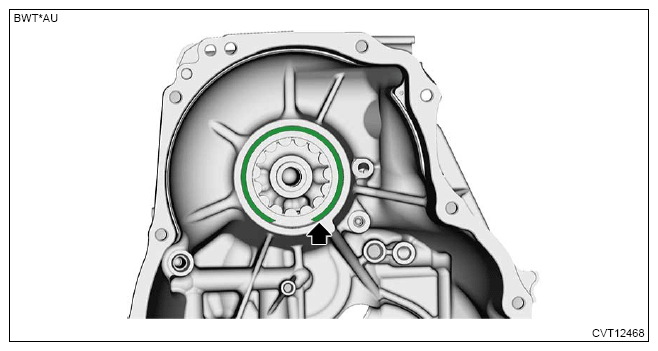

Remove the snap ring on the secondary pulley side.

Courtesy of SUBARU OF AMERICA, INC.

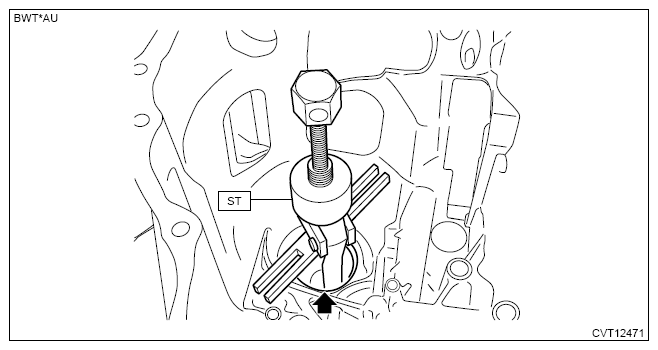

Using the ST, remove the roller bearing.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

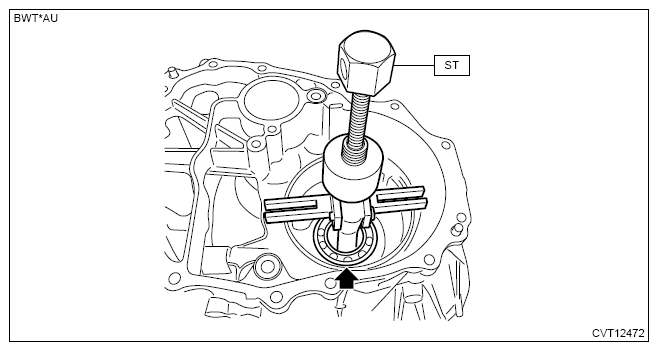

Remove the ball bearing on the reduction driven gear side using ST.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.
