Transmission Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>SECONDARY SPEED SENSOR>REMOVAL .
  2. Remove the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>REMOVAL .
  3. Remove the control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CONTROL DEVICE>REMOVAL .
  4. Remove the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REDUCTION DRIVEN GEAR>REMOVAL .

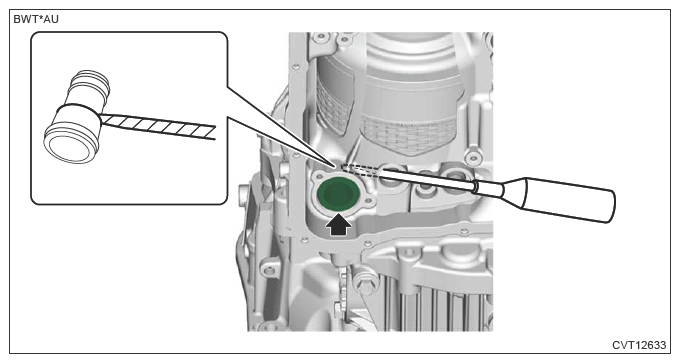

  5. Remove the CVTF pipe using a flat tip screwdriver wrapped with protection tape.
    NOTE: Engage a flat tip screwdriver tip to the stepped portion of CVTF pipe.
    G13951325Courtesy of SUBARU OF AMERICA, INC.

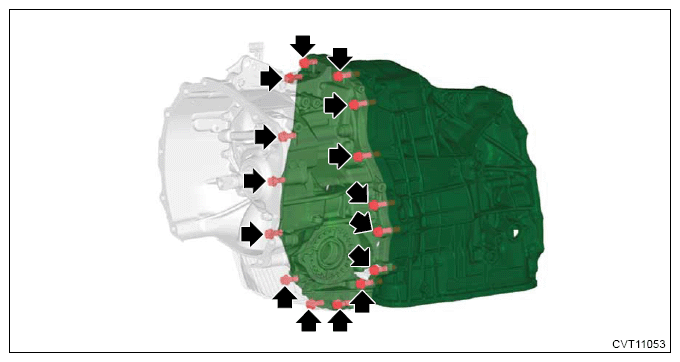

  6. Remove the bolt securing the transmission case.
    G13951326Courtesy of SUBARU OF AMERICA, INC.

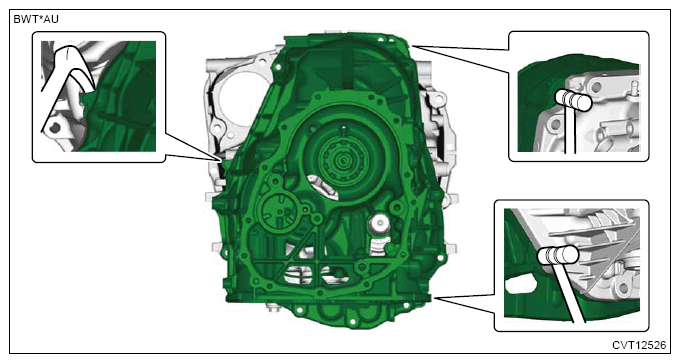

  7. Remove the transmission case using a plastic hammer and a crowbar wrapped with protection tape at the points shown in the figure.
    G13951327Courtesy of SUBARU OF AMERICA, INC.

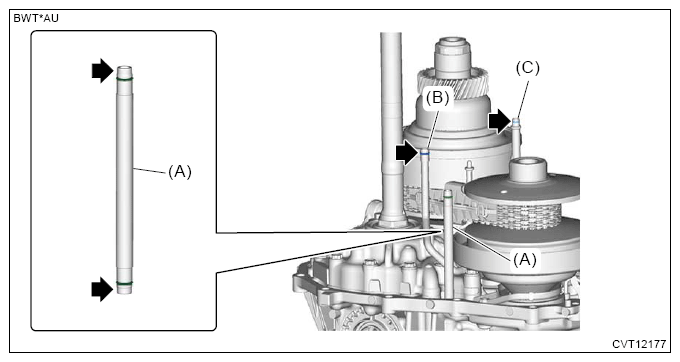

  8. Remove the application pressure pipe (A), and remove the O-rings from the application pressure pipe (A), release pressure pipe (B) and lubrication pipe (C).
    NOTE: The application pressure pipe (A) may remain in the transmission case side.
    G13951328Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the liquid gasket from the transmission case and converter case.
