Internal Gear

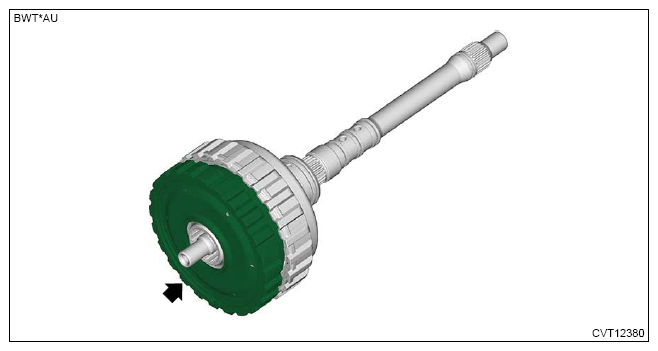

  1. Remove the internal gear.
    G13950776Courtesy of SUBARU OF AMERICA, INC.

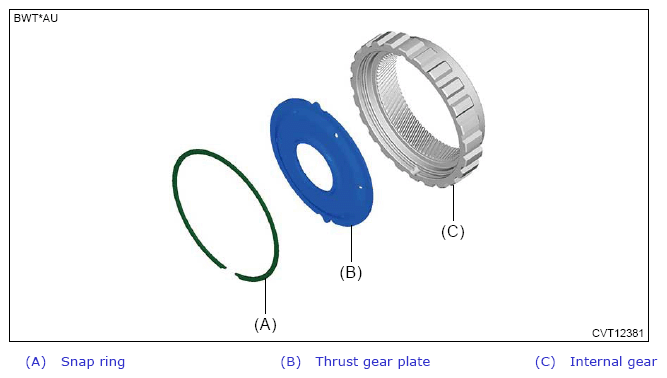

  2. Remove the snap ring and thrust gear plate.
    G13950777Courtesy of SUBARU OF AMERICA, INC.
