CVTF Cooler (With Warmer Feature)
- Model without CVTF cooler (air cool)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 19 (1.9, 14.0)

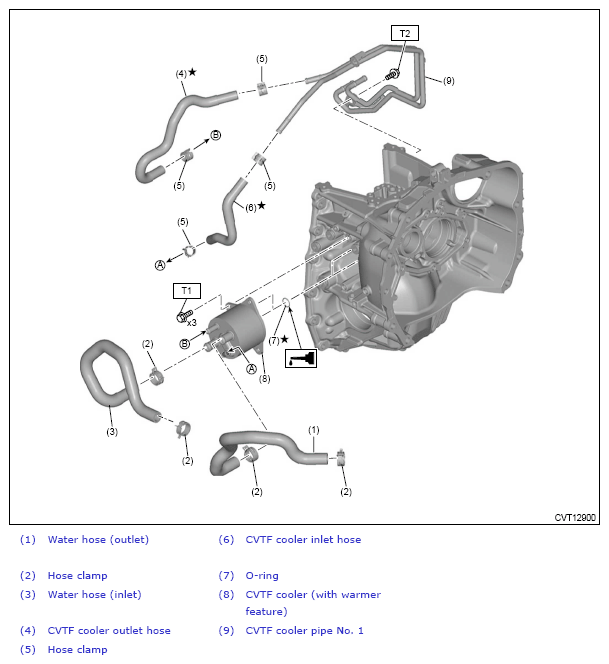

- Model with CVTF cooler (air cool)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 19 (1.9, 14.0)
T2: 35 (3.6, 25.8)
