Multi-function Display (MFD) System: Wiring Diagram

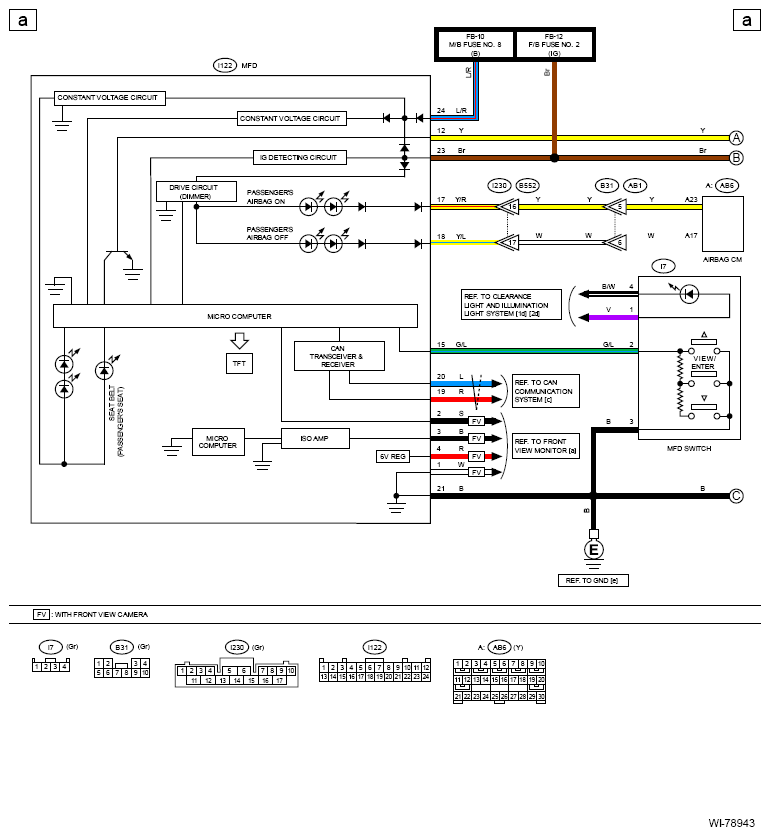

G13263660Courtesy of SUBARU OF AMERICA, INC.

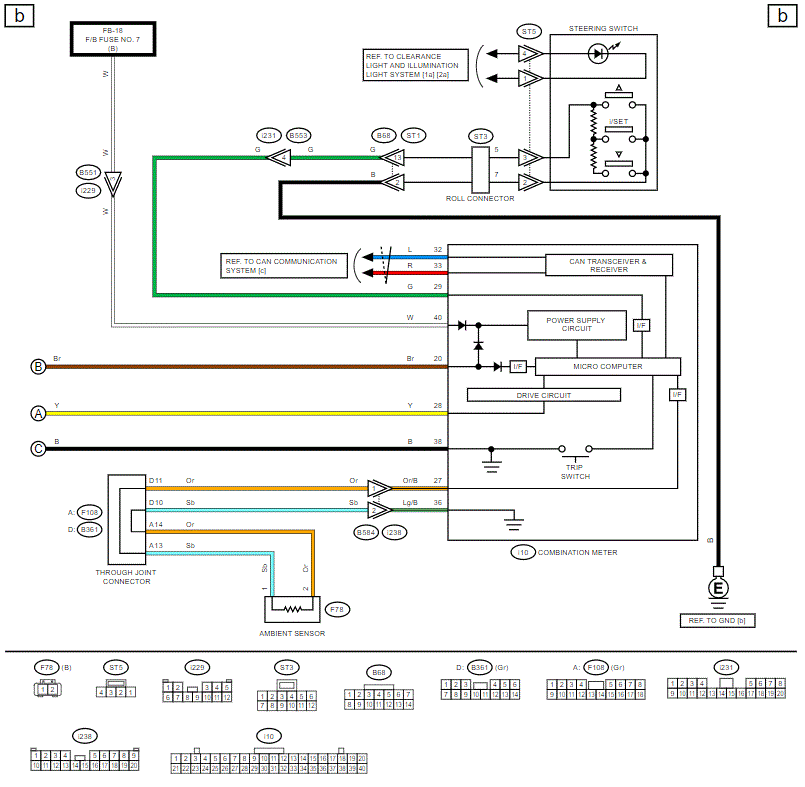

G00603368Courtesy of SUBARU OF AMERICA, INC.
