Power Amplifier: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
  3. Remove the trim panel - rear pillar UPR and the trim panel - rear pillar LWR. Refer to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  4. Remove the trim panel assembly - rear shelf. Refer to EXTERIOR/INTERIOR TRIM>REAR SHELF TRIM>REMOVAL .

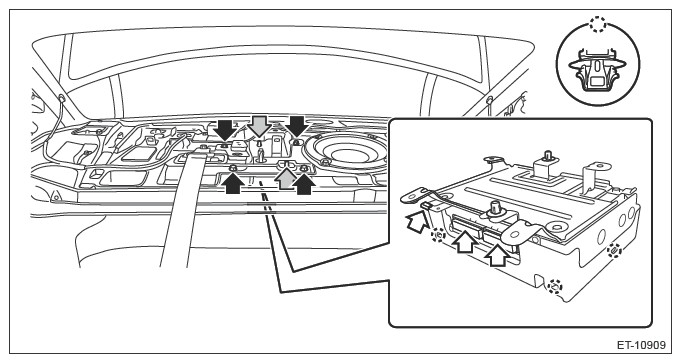

  5. Remove the power amplifier assembly.
    1. Release the harness clips, and disconnect each connector.
    2. Remove the bolts, release the clips, and then remove the power amplifier assembly.
      G13262726Courtesy of SUBARU OF AMERICA, INC.
