Rear Speaker: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR
  3. Remove the speaker assembly rear.
    CAUTION:

    Do not touch the cone.

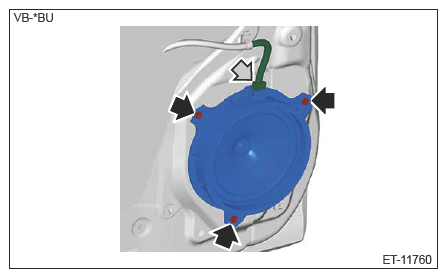

    1. Disconnect the connector.
    2. Remove the screws and remove the speaker assembly rear.
      G14612501Courtesy of SUBARU OF AMERICA, INC.
