Knee Airbag Module: Removal
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

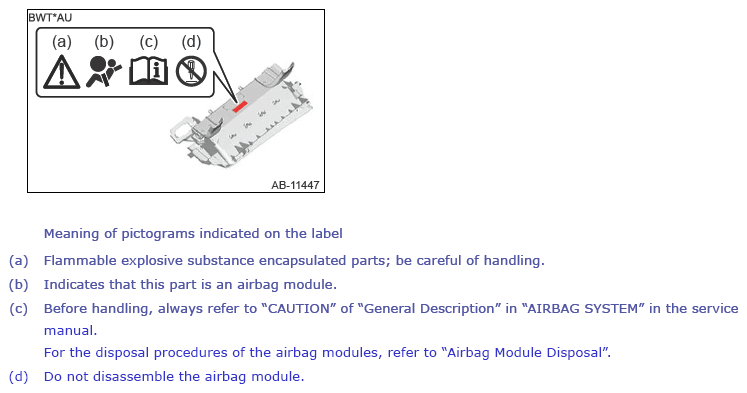

Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
- Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL
- Remove the knee airbag module.
- Disconnect the airbag connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>KNEE AIRBAG MODULE, DRIVER'S AIRBAG MODULE & LAP SEAT BELT PRETENSIONER
- Remove the data link connector.
- Remove the nuts, and remove the knee airbag module.
