Wiper Blade: Installation
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

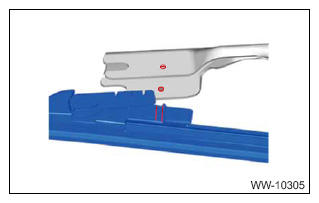

- Align the protrusion section of arm inner and the groove on the blade side.
 Courtesy of SUBARU OF AMERICA, INC.
|

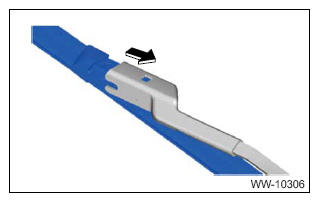

- Slide until the lock button is locked and install the blade assembly windshield wiper.
 Courtesy of SUBARU OF AMERICA, INC.
|
