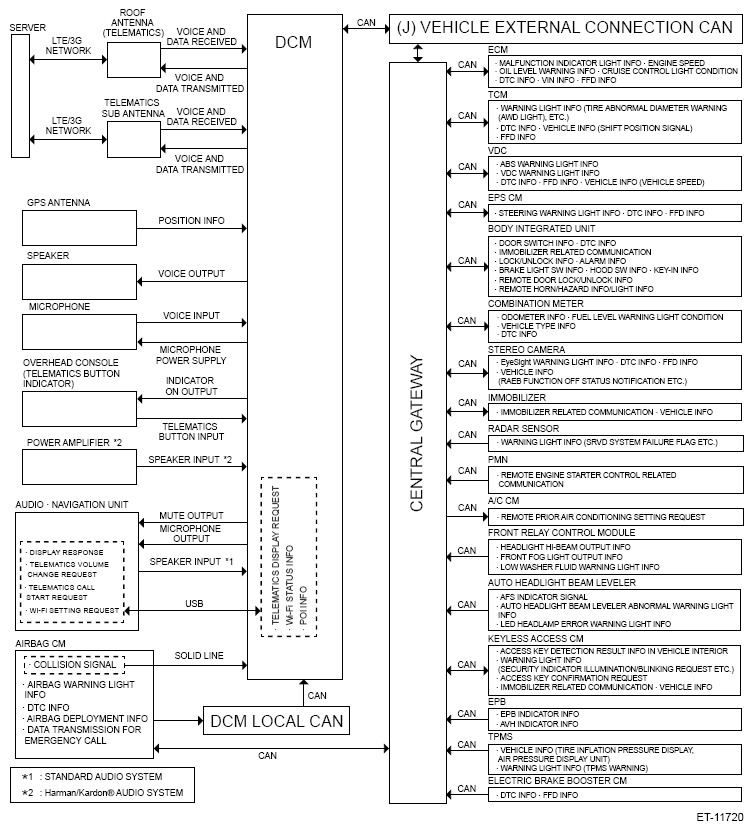

System Block Diagram

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Main signals used between DCM and relevant control module

G14615401Courtesy of SUBARU OF AMERICA, INC.
