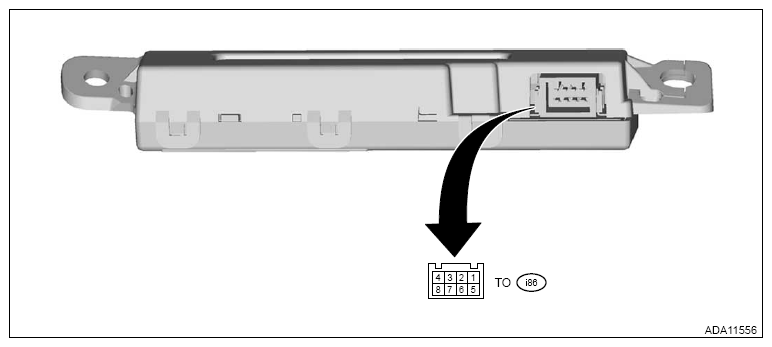

Electrical Specification
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (i86) No. 1 ←→ Chassis ground | Battery power supply | Always | 10 - 16 V |
| (i86) No. 2 ←→ Chassis ground | Ignition power supply | Ignition switch OFF → ON | 0 V → 10 - 16 V |
| (i86) No. 3 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (i86) No. 4 | CAN+ | Cannot be measured | - |
| (i86) No. 5 | CAN- | Cannot be measured | - |
| (i86) No. 6 | - | - | - |
| (i86) No. 7 | - | - | - |
| (i86) No. 8 | - | - | - |
