Room Light: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not remove the light assembly roof when removing the bulb only.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

Remove the light assembly roof.

Remove the clips, and then remove the hook.

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the connector and remove the light assembly roof.

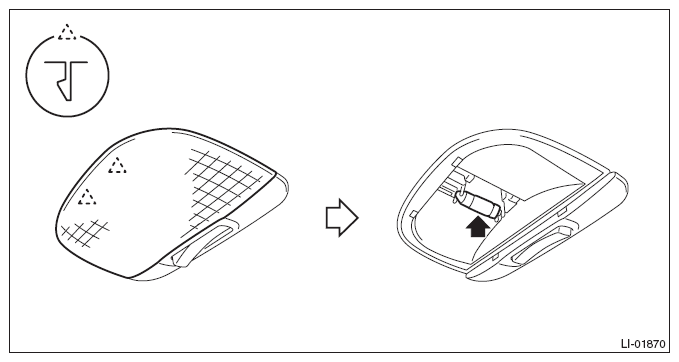

Release the claws and remove the lens and room light bulb.
CAUTION:
- Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
- When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
