Check Turn Signal Light System
Wiring diagram:
Turn signal and hazard light system Ref. to WIRING SYSTEM>TURN SIGNAL LIGHT AND HAZARD LIGHT SYSTEM>WIRING DIAGRAM
Operate the appropriate switch according to the inspection condition.
- CHECK TURN SIGNAL LIGHT OPERATION
.
- Turn the ignition switch to ON.
- Turn the turn signal light switch LH and RH to ON.
Does the turn signal light blink?
Yes : The turn signal light system is normal.
No : Go to 2.
- CHECK BULB
.
Check the hazard (turn signal) light bulb.
Is the bulb normal?
Yes : Go to 3.
No : Replace the hazard (turn signal) light bulb.
- CHECK POWER SUPPLY
.
Using the Subaru Select Monitor, display the following items in the [Data monitor] of [Body Control]. Ref. to COMMON (DIAGNOSTICS)>DATA MONITOR
- [BATT voltage (control)]
- [BATT voltage (BACKUP)]
- [IGN voltage]
Is the voltage 9 - 16 V?
Yes : Go to 4.
No : Check the body integrated unit and replace it if defective.
- Inspection: Ref. to BODY CONTROL (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE
- Replacement: Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT
- CHECK DTC
.
- Turn the ignition switch to ON and wait for at least 10 seconds.
- Read the DTC of [Body Control] using the Subaru Select Monitor. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)
Is DTC displayed?
Yes : Perform the diagnosis for the displayed DTCs. Ref. to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST
No : Go to 5.
- CHECK CURRENT DATA
.
Using the Subaru Select Monitor, display the following items in the [Data monitor] of [Body Control]. Ref. to COMMON (DIAGNOSTICS)>DATA MONITOR
- [Left turn signal input]
- [Right turn signal input]
- [Turn Signal Deep Push Input]
Does the display change as [OFF] ←→ [ON], when the turn signal switch is turned from OFF to ON?
Yes : Go to 6.
No : Go to 7.
- CHECK HARNESS
.
- Disconnect the connectors of body integrated unit and each turn signal light.
- Check the harness between body integrated unit and each turn signal light.
Connector & terminal

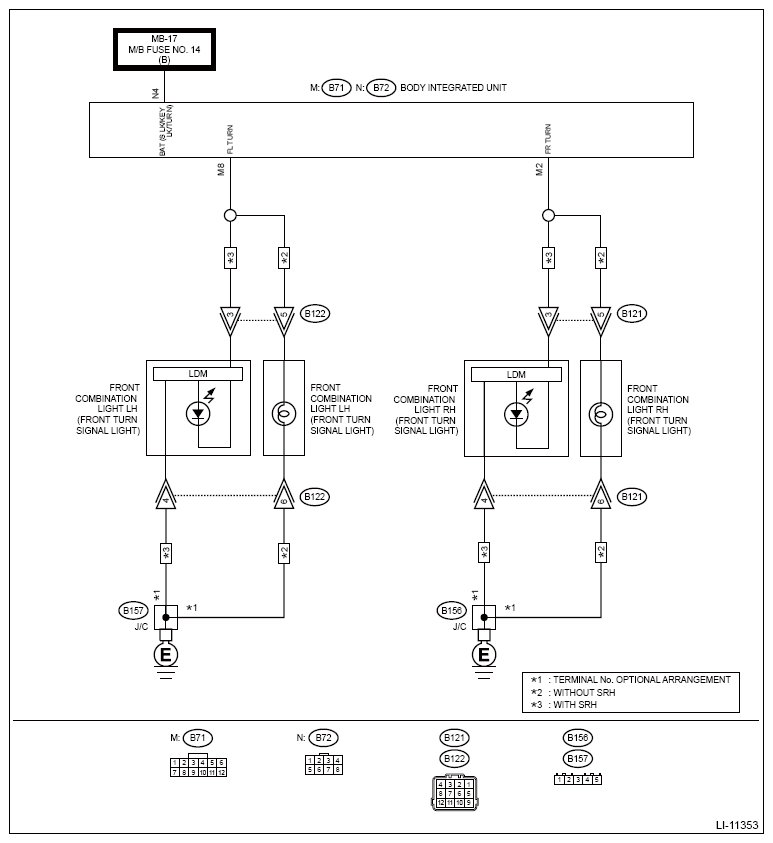

Front turn signal light RH (model without SRH)
(B71) No. 2 - (B121) No. 5:
Front turn signal light LH (model without SRH)
(B71) No. 8 - (B122) No. 5:
Front turn signal light RH (model with SRH)
(B71) No. 2 - (B121) No. 3:
Front turn signal light LH (model with SRH)
(B71) No. 8 - (B122) No. 3:

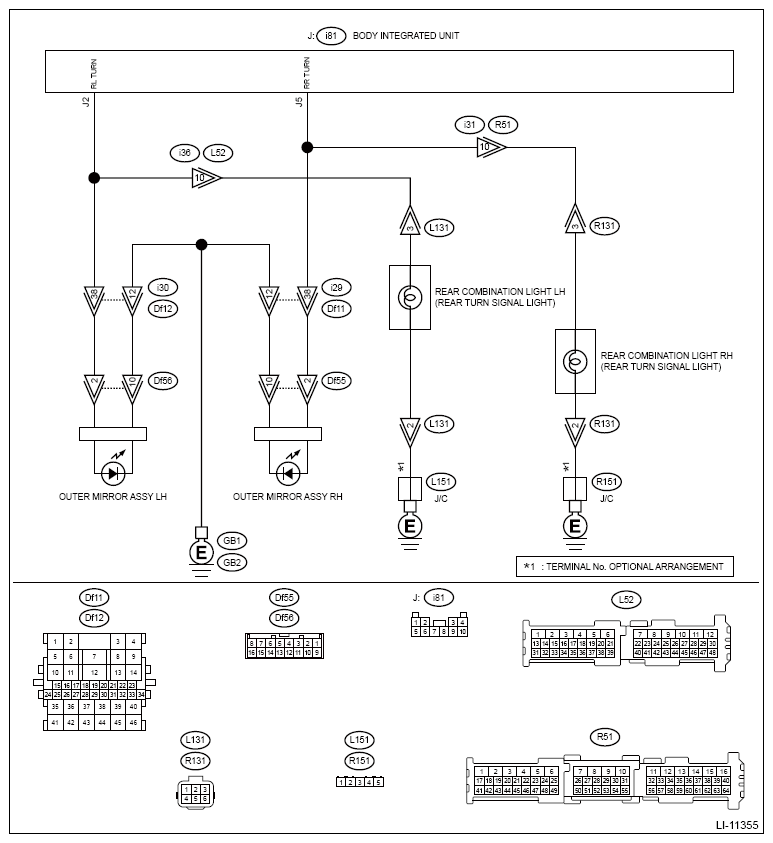

Side turn signal light RH
(i81) No. 5 - (Df55) No. 2:
Side turn signal light LH
(i81) No. 2 - (Df56) No. 2:
Rear turn signal light RH
(i81) No. 5 - (R131) No. 3:
Rear turn signal light LH
(i81) No. 2 - (L131) No. 3:
Is harness normal?
Yes : Go to 7.
No : Repair or replace the defective part.
- CHECK TURN SIGNAL SWITCH
.
Check the turn signal switch. Ref. to LIGHTING SYSTEM>COMBINATION SWITCH (LIGHT)>INSPECTION
Is the turn signal switch OK?
Yes : Go to 8.
No : Replace the combination switch (light). Ref. to LIGHTING SYSTEM>COMBINATION SWITCH (LIGHT)
- CHECK HARNESS
.
- Turn the ignition switch to OFF.
- Disconnect the connectors of body integrated unit and combination switch (light).
- Check the harness between body integrated unit and combination switch (light).
Connector & terminal
(i82) No. 33 - (i131) No. 14:
(i82) No. 38 - (i131) No. 15:
(i82) No. 22 - (i131) No. 12:
Is harness normal?
Yes : Go to 9.
No : Repair or replace the defective part.
- CHECK HARNESS
.
Check the harness between the combination switch (light) connector and the chassis ground.
Connector & terminal
(i131) No. 13 - Chassis ground:
Is the resistance less than 10 Ω?
Yes : Check the body integrated unit and replace it if defective.
- Inspection: Ref. to BODY CONTROL (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE
- Replacement: Ref. to BODY CONTROL/COMMUNICATION SYSTEM>BODY INTEGRATED UNIT
No : Repair or replace the defective part.
