Rear Stabilizer: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the rear stabilizer.
    1. Remove the nut and disconnect the right and left stabilizer links.
    2. Detach the right and left clamps - stabilizer bushing and remove the rear stabilizer.

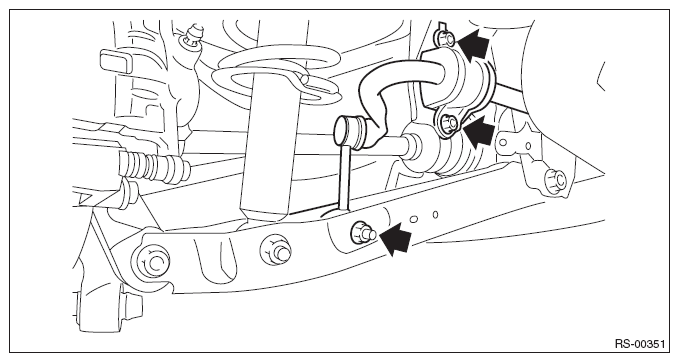

G07914009Courtesy of SUBARU OF AMERICA, INC.
