Rear Trailing Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.

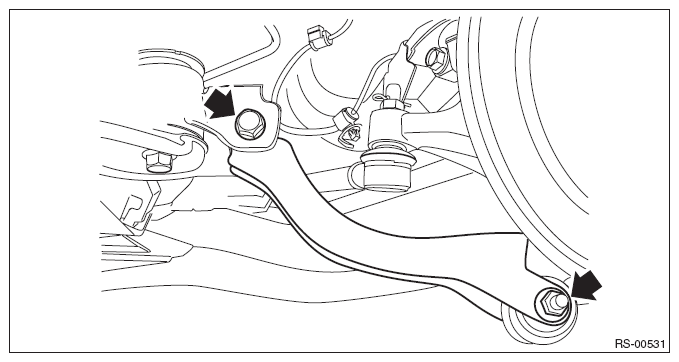

  2. Remove the bolts and nuts, and then remove the trailing link.
G10269479Courtesy of SUBARU OF AMERICA, INC.
