Door Switch: Removal

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the door switch assembly.

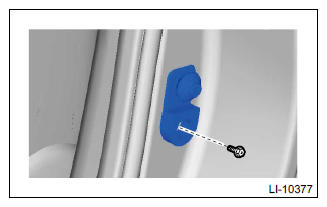

    1. Remove the screws, and pull out the door switch assembly toward you.
      G11246009Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the door switch assembly.
